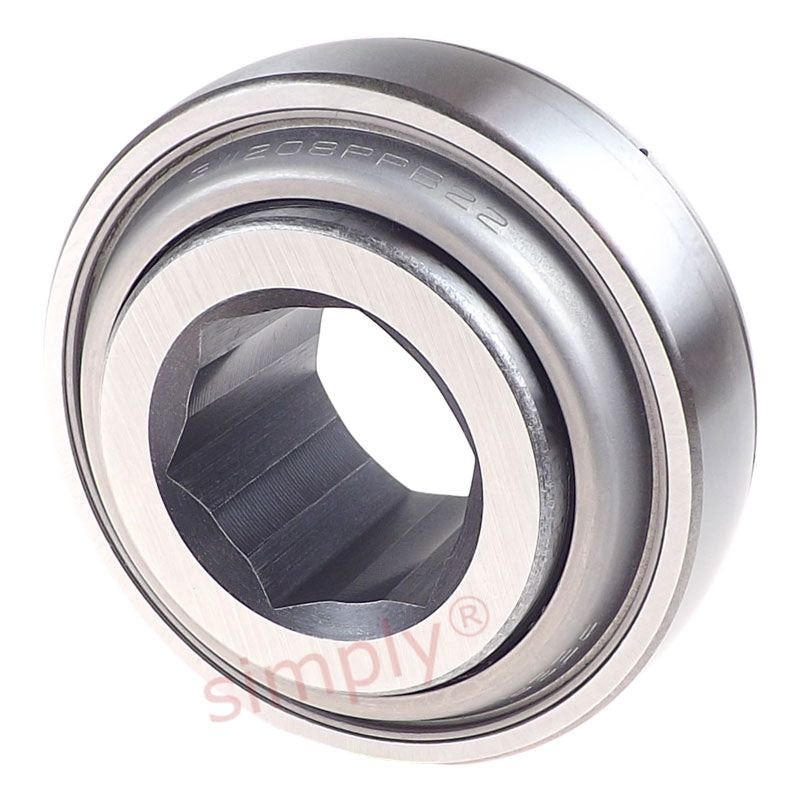

• Major Branded GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch
1 1

SKU: GW208PPB22-MB

Major Branded GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch

Major Branded GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch
$48.10 ex VAT
$48.10 ex VAT
Sale Sold out

Low stock

Price Break
5+ $32.22
9+ $30.41
19+ $30.05
29+ $29.68
49+ $29.32
74+ $28.96
99+ $27.15
199+ $26.79
249+ $26.43
499+ $26.06
999+ $25.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
31.77mm = 1.251 inch
Outside Diameter:
79.99mm = 3.149 inch
Width:
36.53mm = 1.437 (1-7/16) inch
Technical
d 1.251 inch = 31.7754mm (Tolerance +.0000 to minus 0.005)
D 3.1496 inch = 79.99984mm (Tolerance +.0000 to minus 0.0005)
Bi 1.438 inch = 36.5252mm
Be 0.827 inch = 21.0058mm
Be & Bi (Tolerance +.0000 to minus 0.005)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 7340 lbf
Load Ratings Static 3650 lbf
