• Major Branded GW209PPB4 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearing 1.535x3.3465x1.1875 inch
1 1

SKU: GW209PPB4-MB

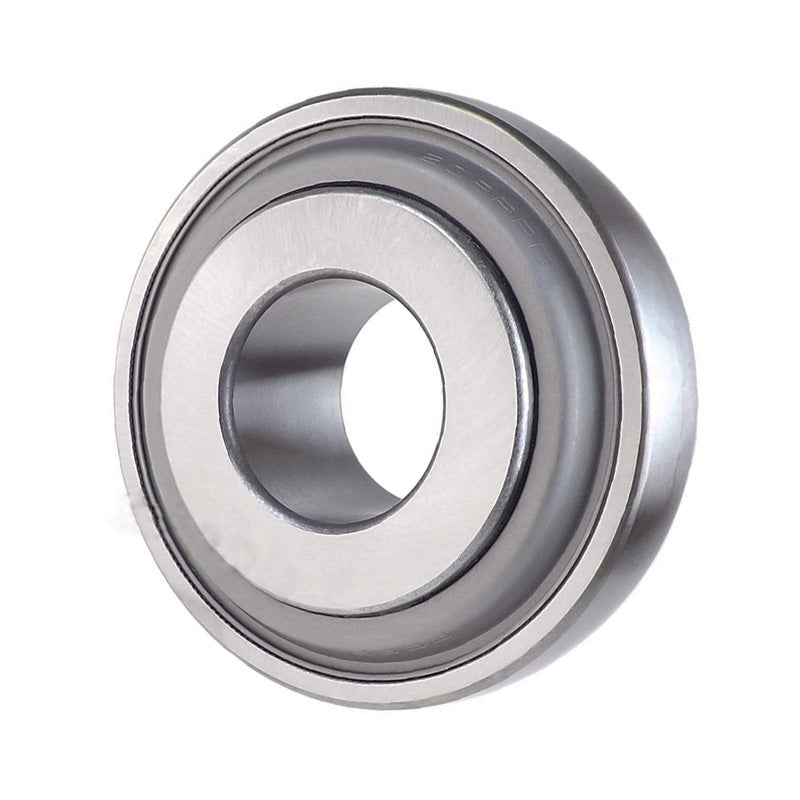

Major Branded GW209PPB4 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearing 1.535x3.3465x1.1875 inch

Major Branded GW209PPB4 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearing 1.535x3.3465x1.1875 inch
$22.91 ex VAT
$22.91 ex VAT
Sale Sold out

Equivalent to: DS209TTR4, 24RG3-209E3, 3AC0911/2D1

Low stock

Price Break
5+ $15.35
9+ $14.48
19+ $14.31
29+ $14.14
49+ $13.97
74+ $13.79
99+ $12.93
199+ $12.76
249+ $12.59
499+ $12.42
999+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PEER - High Quality
Inside Diameter:
38.99mm = 1.535 inch
Outside Diameter:
85mm = 3.346 inch
Width:
30.18mm = 1.188 (1-3/16) inch
Technical
A/d 1.535 inch = 38.989mm (Tolerance +.0000 to minus 0.01)
D 3.3465 inch = 85mm (Tolerance +.0000 to minus 0.0006)
Bi 1.1875 inch = 30.162mm (Tolerance +.0000 to minus 0.005)
Be 1.1875 inch = 30.162mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 7350 lbf
Load Ratings Static 4150 lbf
