• Budget GW209PPB8 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.29x3.3465x1.438 inch
1 1

SKU: GW209PPB8-EU

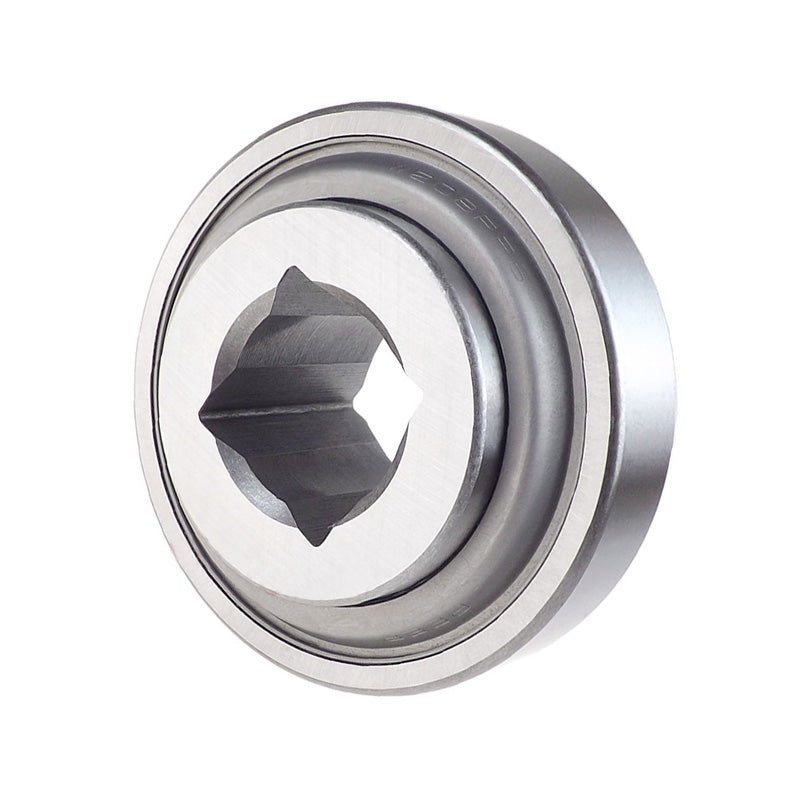

Budget GW209PPB8 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.29x3.3465x1.438 inch

Budget GW209PPB8 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.29x3.3465x1.438 inch
$44.41 ex VAT
$44.41 ex VAT
Sale Sold out

Equivalent to: DS209TTR8, 20SG5-209E3

Low stock

Price Break
5+ $29.74
9+ $28.07
19+ $27.73
29+ $27.40
49+ $27.07
74+ $26.73
99+ $25.06
199+ $24.73
249+ $24.39
499+ $24.06
999+ $23.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
32.77mm = 1.29 inch
Outside Diameter:
85mm = 3.346 inch
Width:
36.53mm = 1.437 (1-7/16) inch
Technical
A/d 1.29 inch = 32.766mm (Tolerance +.0000 to minus +/-.005)
D 3.3465 inch = 85mm (Tolerance +.0000 to minus 0.0006)
Bi 1.438 inch = 36.5252mm
Be 0.866 inch = 21.9964mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 7350 lbf
Load Ratings Static 4150 lbf
