SKU: GX20F-SKF

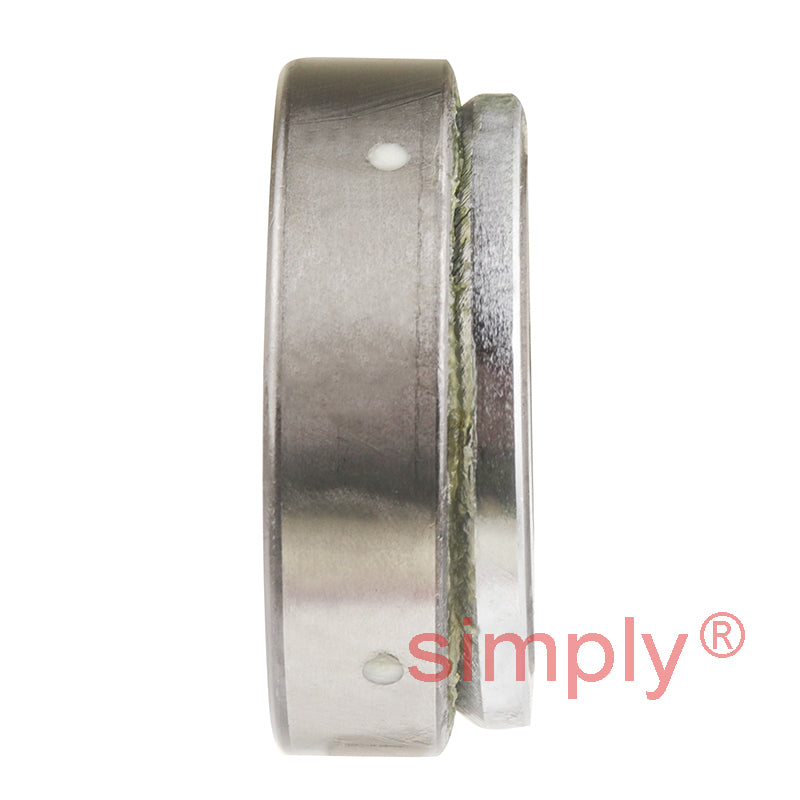

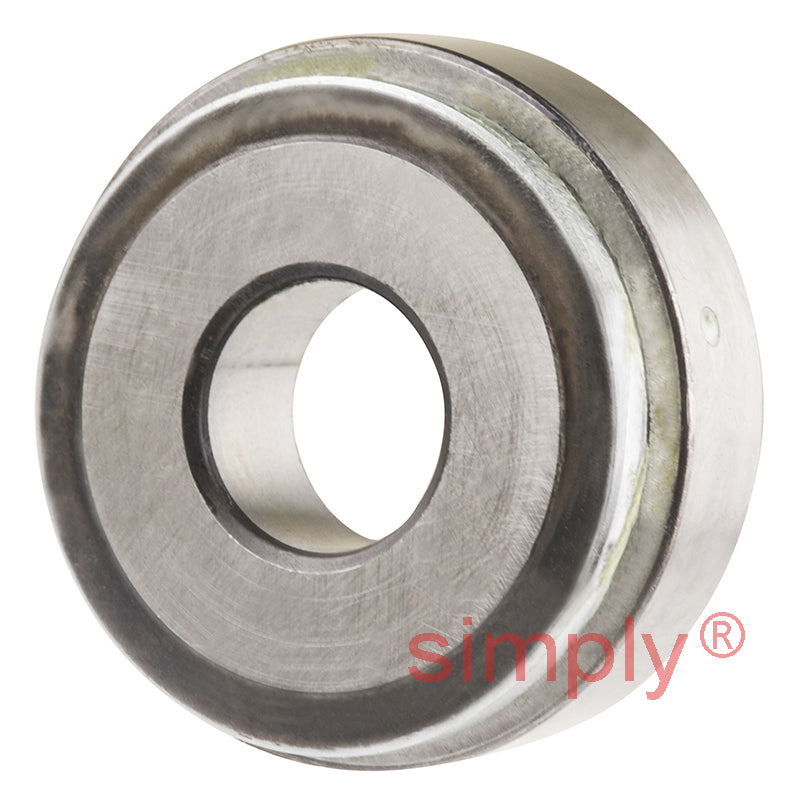

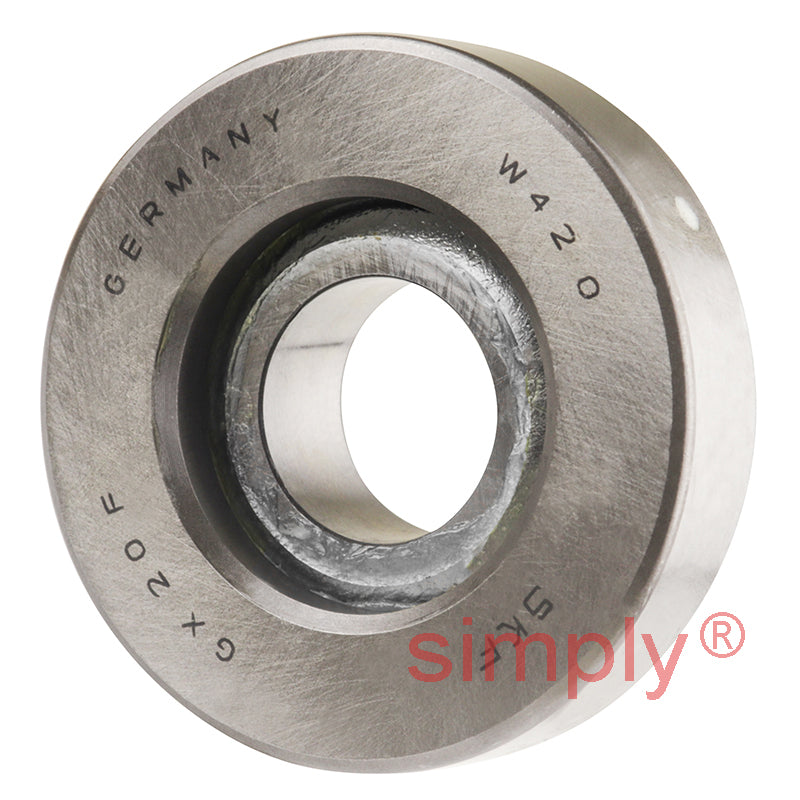

SKF GX20F Maintenance Free Thrust Spherical Plain Bearing 20x55x20mm
SKF GX20F Maintenance Free Thrust Spherical Plain Bearing 20x55x20mm
Regular price
$206.23
ex VAT
Regular price
Sale price
$206.23
ex VAT
Equivalent to: GE20AW GX20T
In stock
Price Break
10+
$138.14
19+
$130.38
29+
$128.82
39+
$127.27
49+
$125.72
74+
$124.17
99+
$116.41
199+
$114.86
249+
$113.30
499+
$111.75
999+
$108.65
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 55mm |
| T | 20mm |
| Angle | 5 degree |
| Dynamic load | 46.5 kN |
| Static load | 73.5 kN |
| dk | 60mm |
| d1 | 50mm |
| D1 | 31mm |
| B | 14.5mm |
| C | 13.8mm |
| r1 min | 1mm |
| s | 12.5mm |
| da min | 40mm |
| Da max | 44mm |
| ra max | 1mm |
| Weight | 0.25 kg |
