SKU: GX35F-SKF

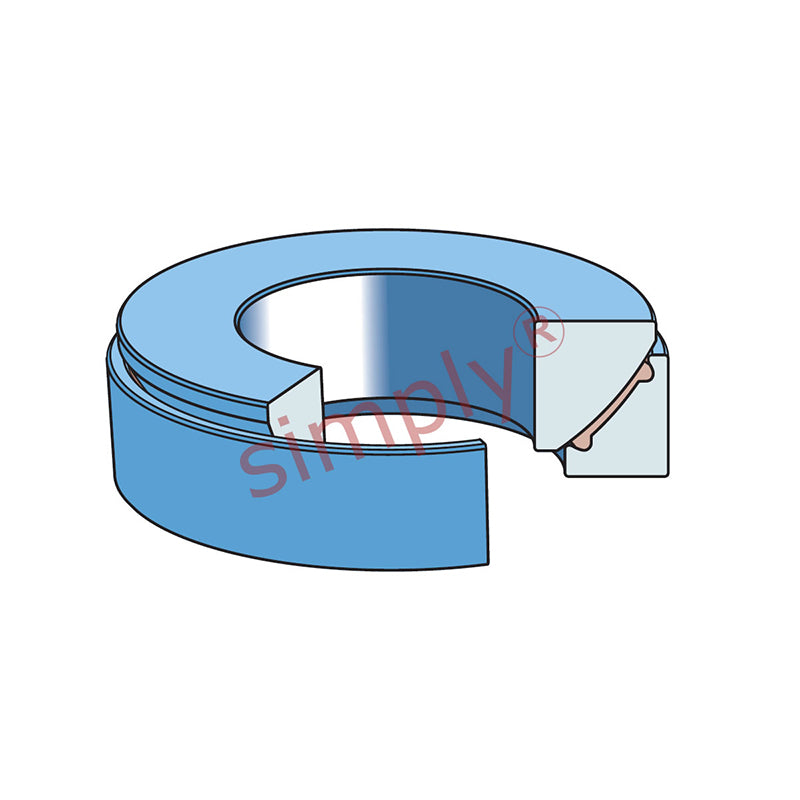

SKF GX35F Maintenance Free Thrust Spherical Plain Bearing 35x90x28mm

Name: SKF GX35F Maintenance Free Thrust Spherical Plain Bearing 35x90x28mm
Brand: SKF
SKU: GX35F-SKF
Price: 245.40 USD
Availability: InStock

$245.40 ex VAT

Sale Sold out

Equivalent to: GE35AW GX35T

In stock

Price Break

10+ $164.38

19+ $155.14

29+ $153.30

39+ $151.45

49+ $149.60

74+ $147.75

99+ $138.52

199+ $136.67

249+ $134.83

499+ $132.98

999+ $129.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 90mm
Width:: 28mm

Technical

d	35mm
D	90mm
T	28mm
Angle	6 degree
Dynamic load	134 kN
Static load	216 kN
dk	98mm
d1	84mm
D1	50.5mm
B	22mm
C	20.7mm
r1 min	1mm
s	22mm
da min	66mm
Da max	71mm
ra max	1mm
Weight	0.98 kg
