SKU: GX80F-SKF

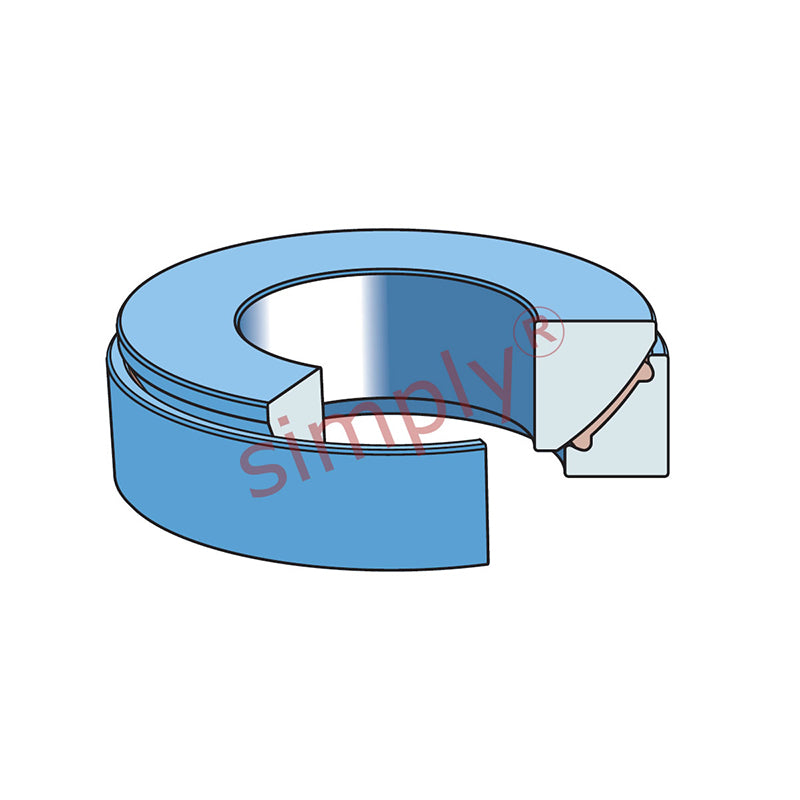

SKF GX80F Maintenance Free Thrust Spherical Plain Bearing 80x180x50mm

Name: SKF GX80F Maintenance Free Thrust Spherical Plain Bearing 80x180x50mm
Brand: SKF
SKU: GX80F-SKF
Price: 1701.45 USD
Availability: InStock

$1,701.45 ex VAT

Sale Sold out

Equivalent to: GE80AW GX80T

In stock

Price Break

10+ $1,139.68

19+ $1,075.65

29+ $1,062.85

39+ $1,050.04

49+ $1,037.24

74+ $1,024.43

99+ $960.41

199+ $947.60

249+ $934.80

499+ $921.99

999+ $896.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 180mm
Width:: 50mm

Technical

d	80mm
D	180mm
T	50mm
Angle	5 degree
Dynamic load	570 kN
Static load	915 kN
dk	197mm
d1	172mm
D1	107.5mm
B	43.5mm
C	38mm
r1 min	1mm
s	42.5mm
da min	135mm
Da max	145mm
ra max	1mm
Weight	6.95 kg
