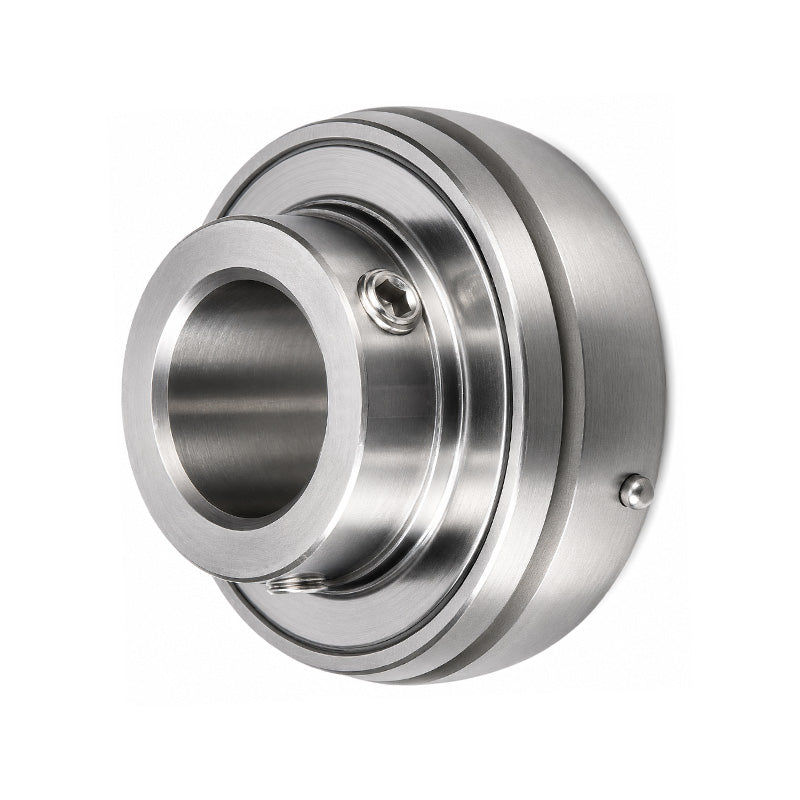

• INA GY1014KRRB Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 22.23x52x34.1mm
  • INA
1 2

SKU: GY1014-KRR-B-INA

INA GY1014KRRB Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 22.23x52x34.1mm

INA GY1014KRRB Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 22.23x52x34.1mm
$23.76 ex VAT
$23.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.91
5+ $15.02
10+ $14.84
15+ $14.66
20+ $14.48
30+ $14.30
40+ $13.41
50+ $13.23
60+ $13.05
75+ $12.87
100+ $12.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
52mm
Width:
34.1mm
Technical
d 7/8 inch
d 22.23mm
Dsp 2.0472 inch
Dsp 52mm
B 1.3425 inch
B 34.1mm
A 0.197 inch
C 0.591 inch
C2 0.654 inch
Ca 0.154 inch
D1 1.673 inch
d1 1.331 inch
S 0.563 inch
W 3/32 inch
Dynamic load Cr 3150 lbf
Dynamic load Cr 14000 N
Static load C0r 1760 lbf
Static load C0r 7800 N
Weight 0.44 lbs
