• INA GY1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 31.75x62x38.1mm
  • INA
1 2

SKU: GY1104-206-KRR-B-AS2/V-INA

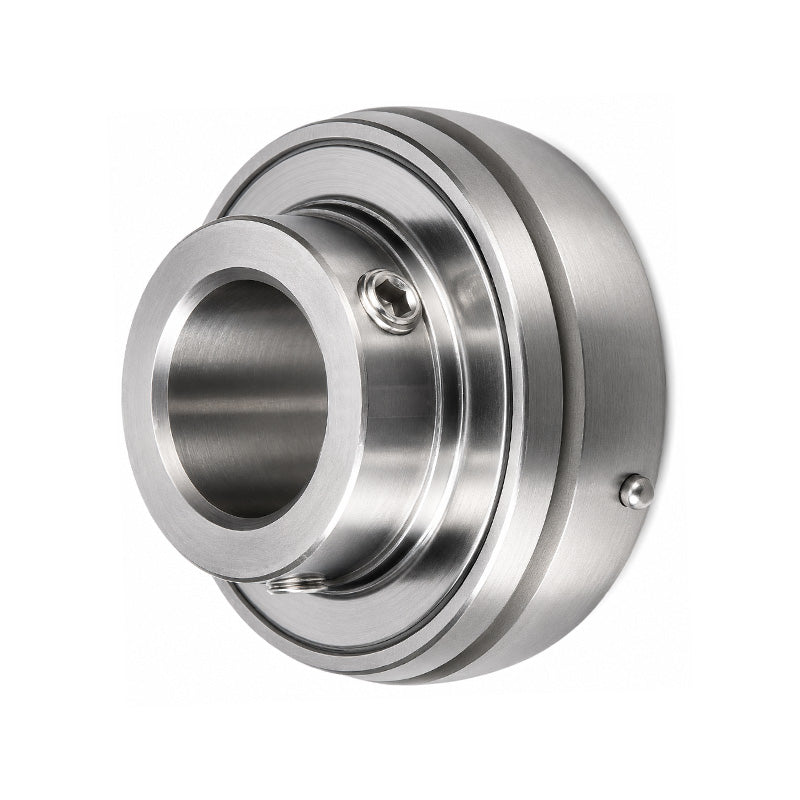

INA GY1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 31.75x62x38.1mm

INA GY1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 31.75x62x38.1mm
$35.26 ex VAT
$35.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.62
5+ $22.29
10+ $22.03
15+ $21.76
20+ $21.50
30+ $21.23
40+ $19.91
50+ $19.64
60+ $19.37
75+ $19.11
100+ $18.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

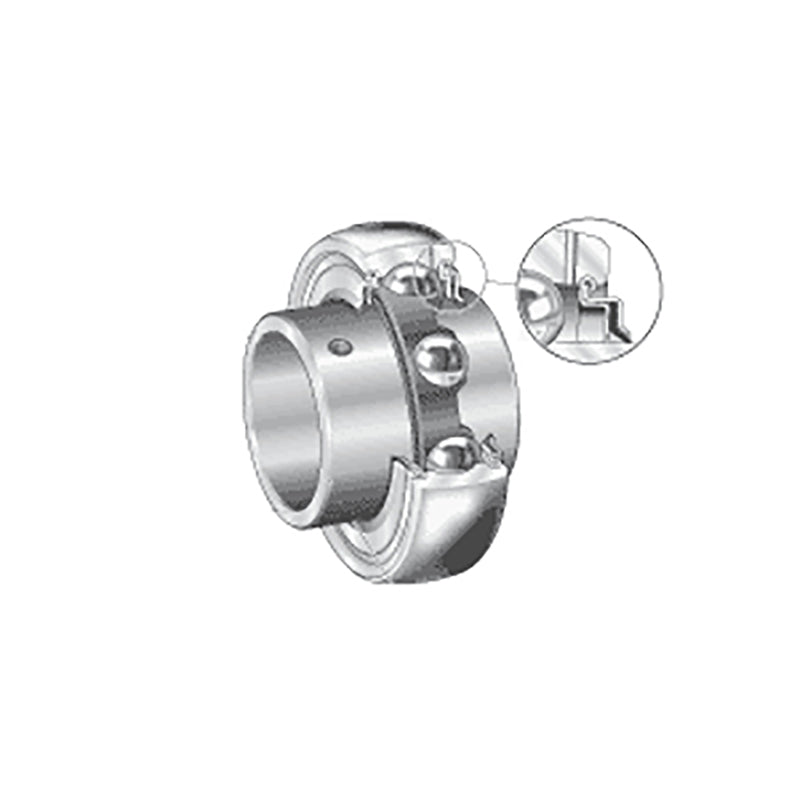

INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
62mm
Width:
38.1mm
Technical
d 1-1/4 inch
d 31.75mm
Dsp 2.4409 inch
Dsp 62mm
B 1.5000 inch
B 38.1mm
A 0.228 inch
C 0.709 inch
C2 0.815 inch
Ca 0.185 inch
D1 2.047 inch
d1 1.583 inch
S 0.626 inch
W 1/8 inch
Dynamic load Cr 4350 lbf
Dynamic load Cr 19500 N
Static load C0r 2550 lbf
Static load C0r 11300 N
Weight 0.73 lbs
