• INA GY1200KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 50.8x100x55.6mm
  • INA
1 2

SKU: GY1200-KRR-B-AS2/V-INA

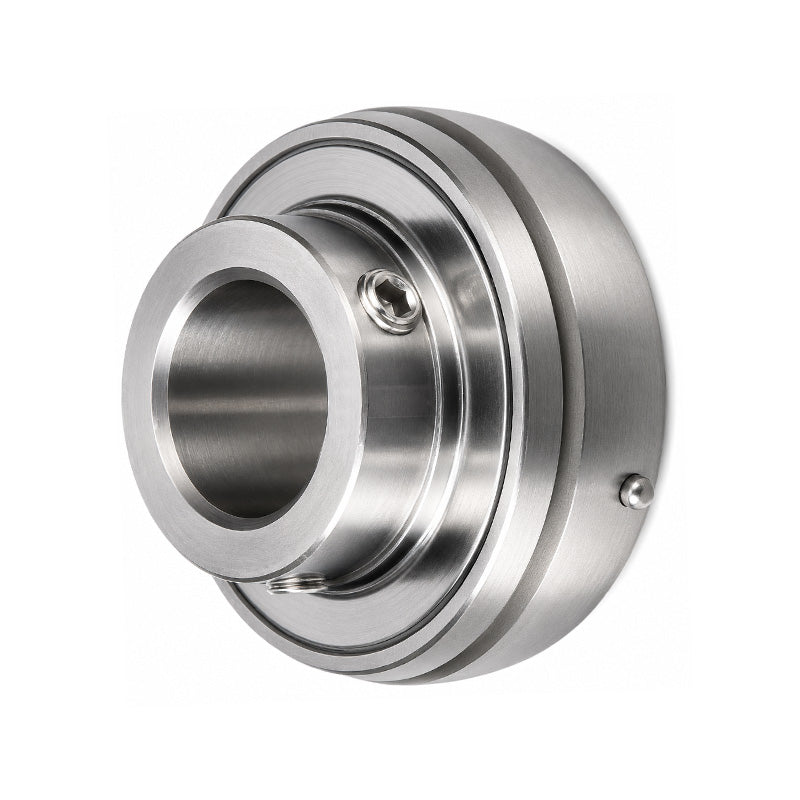

INA GY1200KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 50.8x100x55.6mm

INA GY1200KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 50.8x100x55.6mm
$84.53 ex VAT
$84.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.62
5+ $53.44
10+ $52.80
15+ $52.17
20+ $51.53
30+ $50.90
40+ $47.72
50+ $47.08
60+ $46.44
75+ $45.81
100+ $44.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

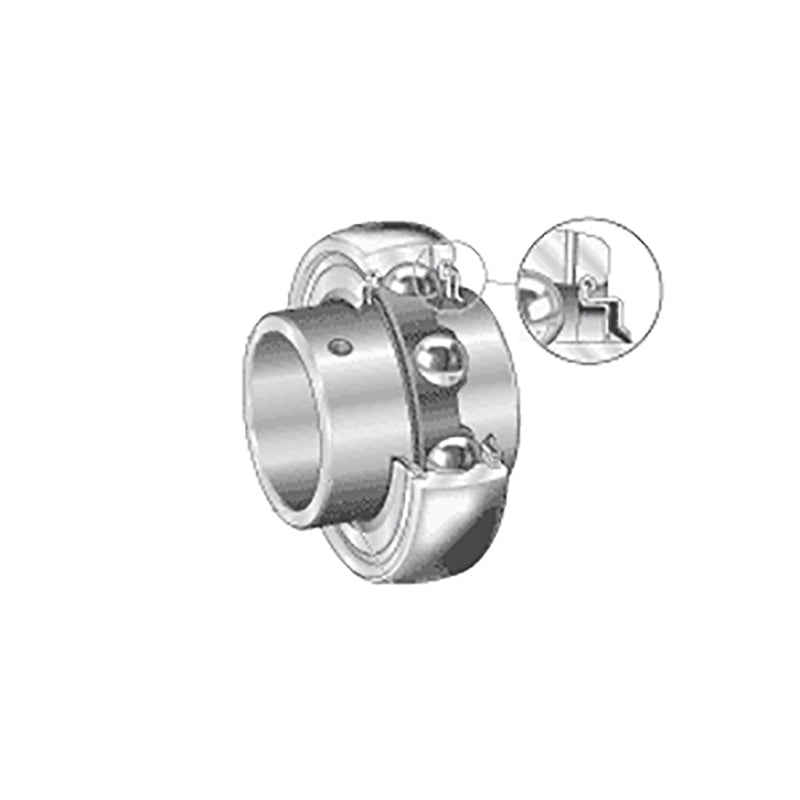

INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
100mm
Width:
55.6mm
Technical
d 2 inch
d 50.8mm
Dsp 3.9370 inch
Dsp 100mm
B 2.1890 inch
B 55.6mm
A 0.354 inch
C 0.984 inch
C2 1.142 inch
Ca 0.276 inch
D1 3.382 inch
d1 2.748 inch
S 0.874 inch
W 5/32 inch
Dynamic load Cr 9800 lbf
Dynamic load Cr 43500 N
Static load C0r 6500 lbf
Static load C0r 29000 N
Weight 2.42 lbs
