SKU: GY1215-KRR-B-AS2/V-INA

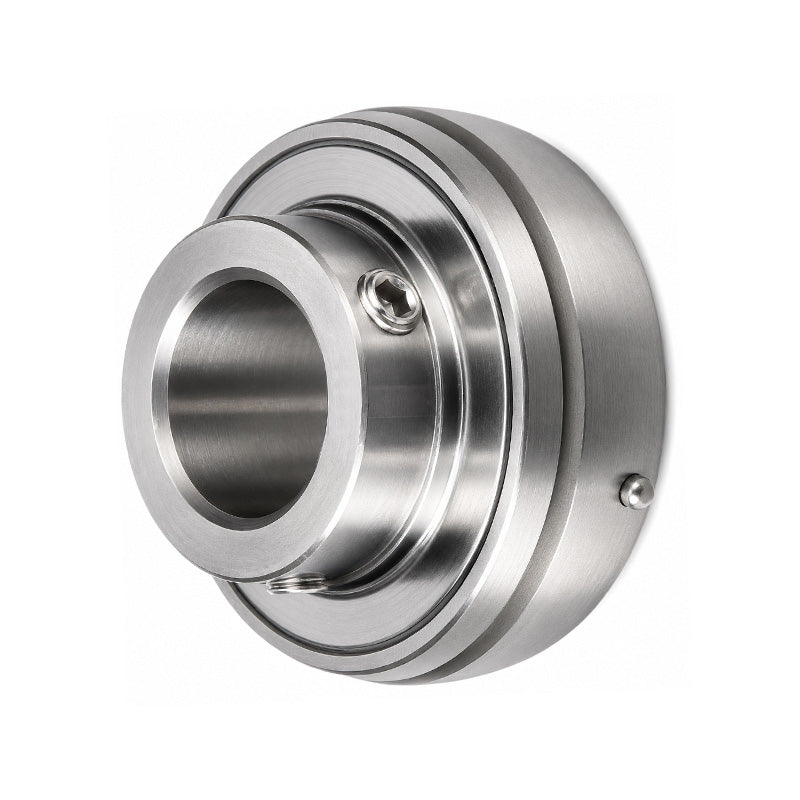

INA GY1215KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 74.61x130x77.8mm
INA GY1215KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 74.61x130x77.8mm
Regular price
$211.01
ex VAT
Regular price
Sale price
$211.01
ex VAT
In stock
Price Break
3+
$141.34
5+
$133.40
10+
$131.81
15+
$130.22
20+
$128.64
30+
$127.05
40+
$119.11
50+
$117.52
60+
$115.93
75+
$114.34
100+
$111.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

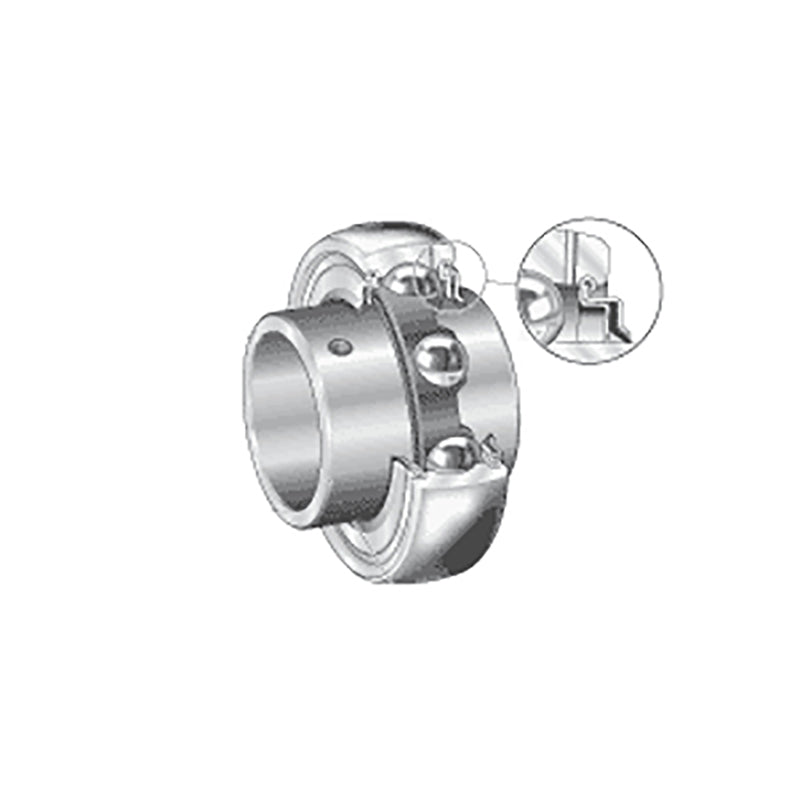

INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Outside Diameter:
- 130mm
- Width:
- 77.8mm
Technical
Technical
| d | 2-15/16 inch |
|---|---|
| d | 74.61mm |
| Dsp | 5.1181 inch |
| Dsp | 130mm |
| B | 3.0630 inch |
| B | 77.8mm |
| A | 0.5 inch |
| C | 1.102 inch |
| C2 | 1.201 inch |
| Ca | 0.335 inch |
| D1 | 4.449 inch |
| d1 | 3.543 inch |
| S | 1.311 inch |
| W | 3/16 inch |
| Dynamic load Cr | 13950 lbf |
| Dynamic load Cr | 62000 N |
| Static load C0r | 10000 lbf |
| Static load C0r | 44500 N |
| Weight | 4.82 lbs |
