SKU: GYE16-KRR-B-INA

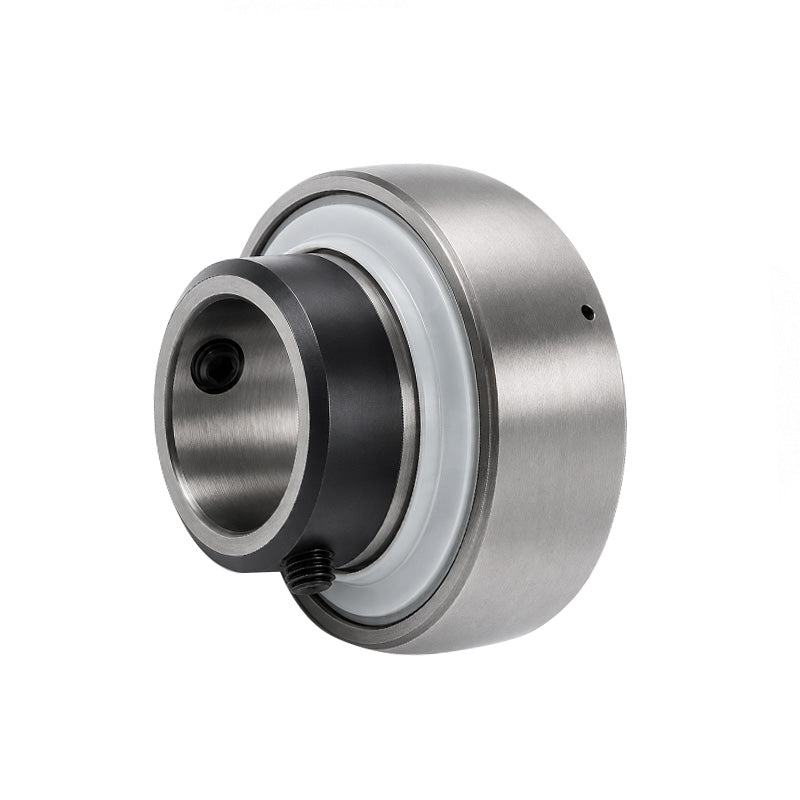

INA GYE16XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Grub Screws 16x40x27.4mm
INA GYE16XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Grub Screws 16x40x27.4mm
Regular price
$22.81
ex VAT
Regular price
Sale price
$22.81
ex VAT
In stock
Price Break
3+
$15.28
5+
$14.42
10+
$14.25
15+
$14.08
20+
$13.91
30+
$13.74
40+
$12.88
50+
$12.71
60+
$12.53
75+
$12.36
100+
$12.02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA GYE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 40mm
- Width:
- 27.4mm
Technical
Technical
| d | 16mm |
|---|---|
| Dsp | 40mm |
| B | 27.4mm |
| A | 4mm |
| C | 12mm |
| C2 | 16.6mm |
| Ca | 3.4mm |
| D1 | 31.6mm |
| d1 | 23.9mm |
| S | 11.5mm |
| W | 2.5mm |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Weight | 0.09 kg |
