SKU: H208-SKF

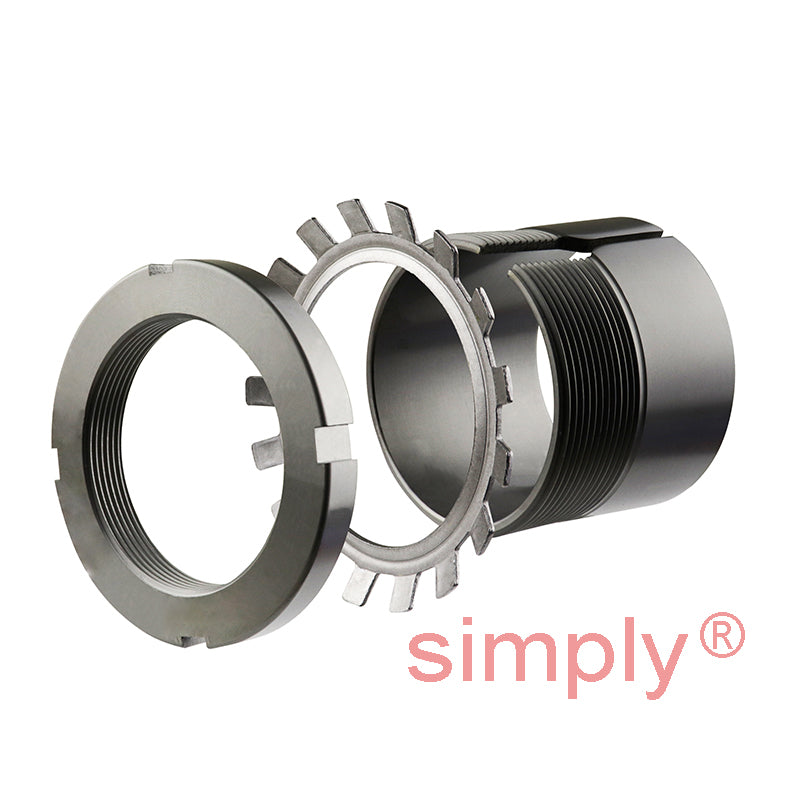

SKF H208 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

Name: SKF H208 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Brand: SKF
SKU: H208-SKF
Price: 28.25 USD
Availability: InStock

$28.25 ex VAT

Sale Sold out

In stock

Price Break

2+ $18.92

5+ $17.85

10+ $17.64

20+ $17.43

49+ $17.22

74+ $17.00

99+ $15.94

199+ $15.73

249+ $15.52

499+ $15.30

999+ $14.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 31mm

Technical

---	Dimensions
d1	35mm
d	40mm
d3	58mm
B1	31mm
B2	10mm
G	Thread 40x1.5mm
Weight	0.16 kg
---	Assembly Parts
Sleeve	H208
Nut	KM8
Washer	MB8
---	Matching Self Aligning Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1208K+taper+self+open>1208K</a>
