• SKF H210 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
1 1

SKU: H210-SKF

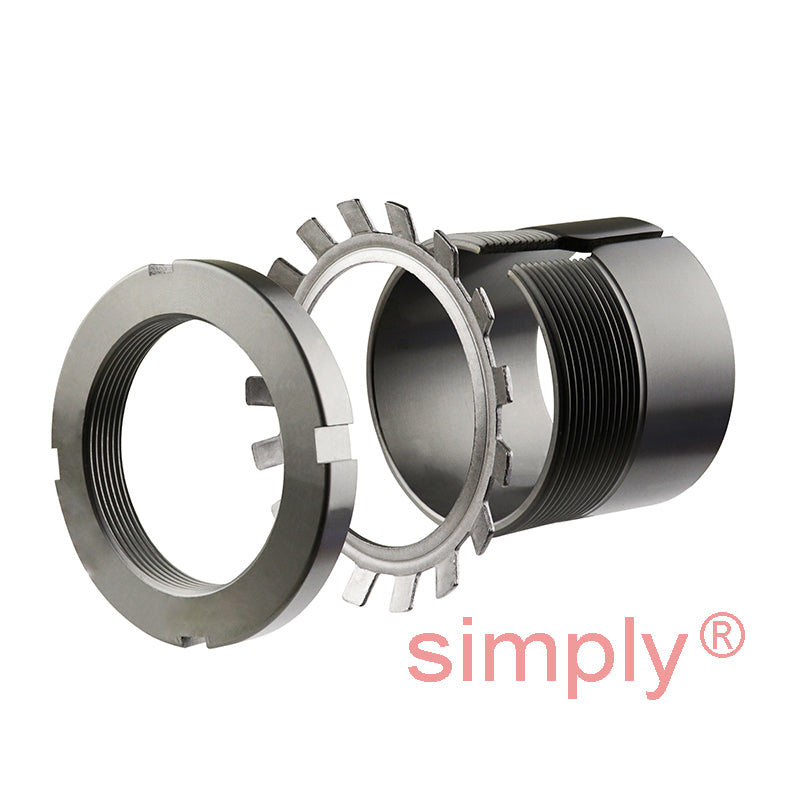

SKF H210 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

SKF H210 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
$40.62 ex VAT
$40.62 ex VAT
Sale Sold out

In stock

Price Break
2+ $27.21
5+ $25.68
10+ $25.37
20+ $25.07
49+ $24.76
74+ $24.45
99+ $22.93
199+ $22.62
249+ $22.31
499+ $22.01
999+ $21.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
70mm
Width:
35mm
Technical
--- Dimensions
d1 45mm
d 50mm
d3 70mm
B1 35mm
B2 12mm
G Thread 50x1.5mm
Weight 0.24 kg
--- Assembly Parts
Sleeve H210
Nut KM10
Washer MB10
Hydraulic nut HMV10E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1210K+taper+self+open>1210K</a>
