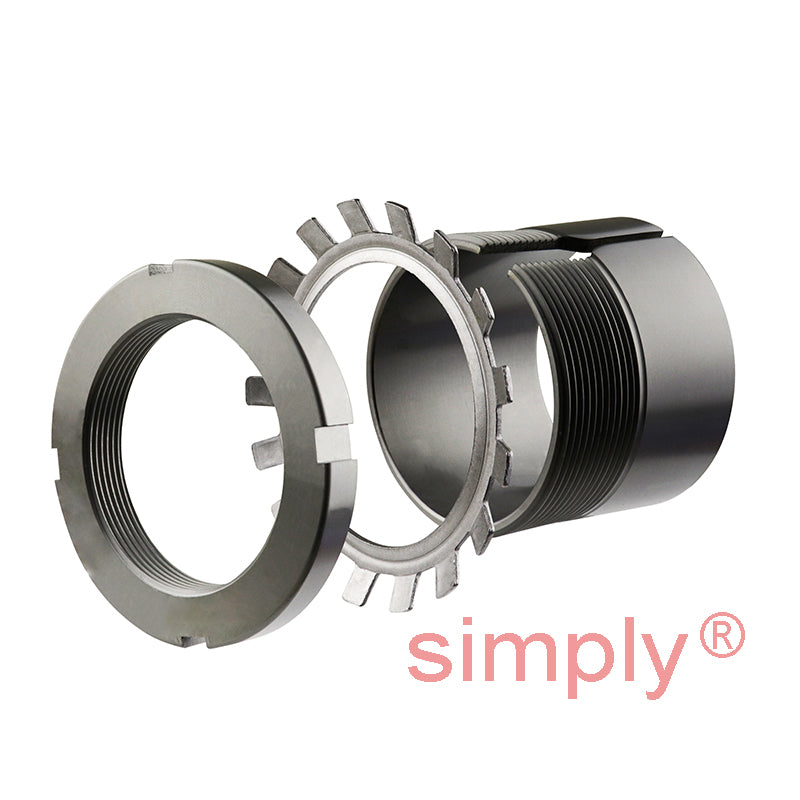

• SKF H211 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
1 1

SKU: H211-SKF

SKF H211 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft

SKF H211 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
$38.80 ex VAT
$38.80 ex VAT
Sale Sold out

In stock

Price Break
2+ $25.99
5+ $24.53
10+ $24.24
20+ $23.95
49+ $23.65
74+ $23.36
99+ $21.90
199+ $21.61
249+ $21.32
499+ $21.03
999+ $20.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Width:
37mm
Technical
--- Dimensions
d1 50mm
d 55mm
d3 75mm
B1 37mm
B2 12.5mm
G Thread 55x2mm
Weight 0.28 kg
--- Assembly Parts
Sleeve H211
Nut KM11
Washer MB11
Hydraulic nut HMV11E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1211K+taper+self+open>1211K</a>
