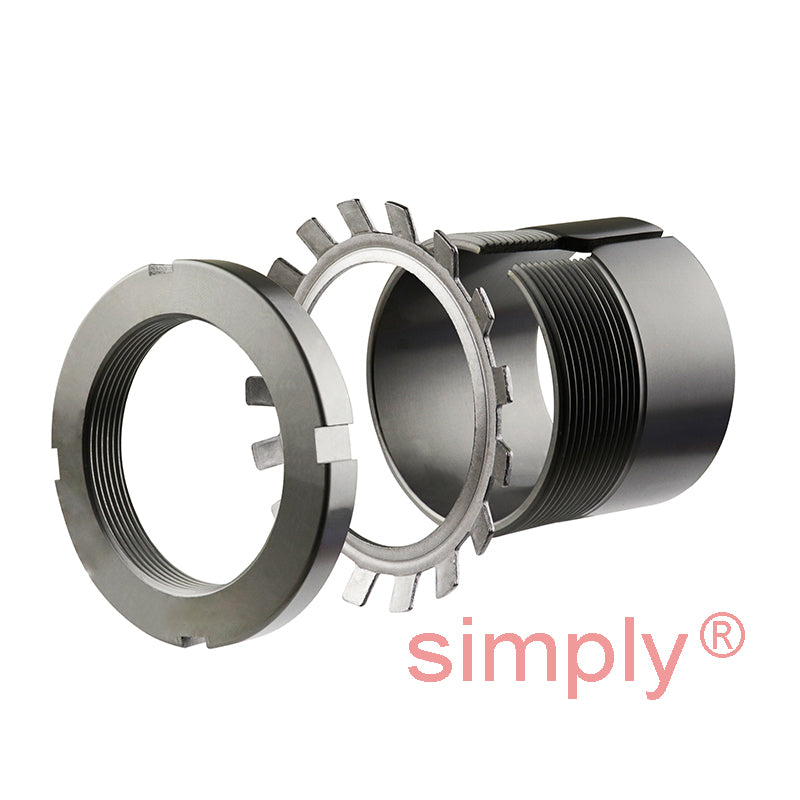

• SKF H212 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
1 1

SKU: H212-SKF

SKF H212 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft

SKF H212 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
$40.54 ex VAT
$40.54 ex VAT
Sale Sold out

In stock

Price Break
2+ $27.15
5+ $25.63
10+ $25.32
20+ $25.02
49+ $24.71
74+ $24.41
99+ $22.88
199+ $22.58
249+ $22.27
499+ $21.96
999+ $21.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
38mm
Technical
--- Dimensions
d1 55mm
d 60mm
d3 80mm
B1 38mm
B2 12.5mm
G Thread 60x2mm
Weight 0.31 kg
--- Assembly Parts
Sleeve H212
Nut KM12
Washer MB12
Hydraulic nut HMV12E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1212K+taper+self+open>1212K</a>
