• SKF H213 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
1 1

SKU: H213-SKF

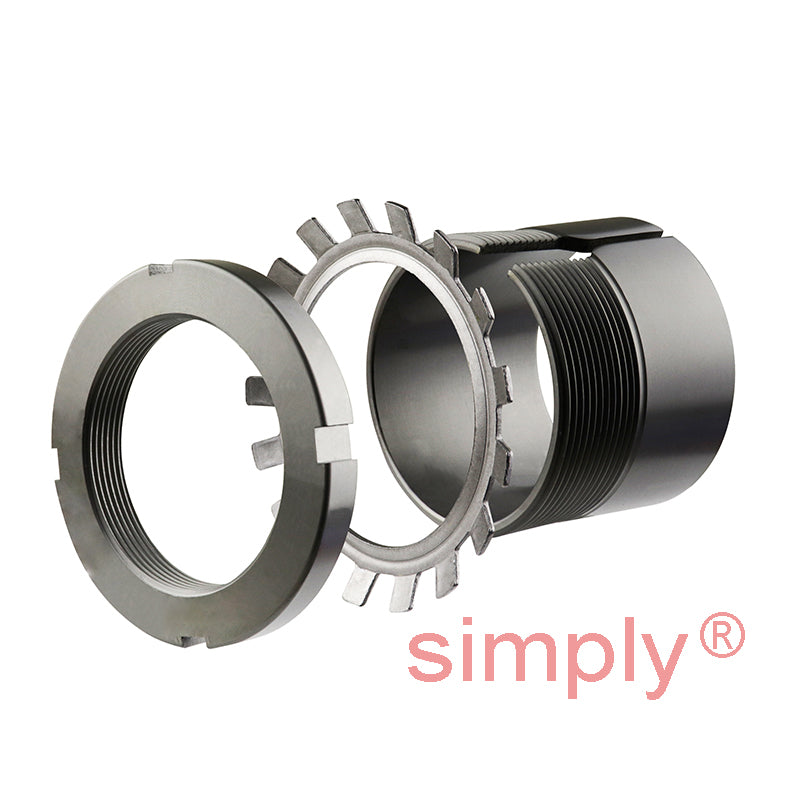

SKF H213 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

SKF H213 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
$42.36 ex VAT
$42.36 ex VAT
Sale Sold out

In stock

Price Break
2+ $28.38
5+ $26.78
10+ $26.46
20+ $26.14
49+ $25.82
74+ $25.51
99+ $23.91
199+ $23.59
249+ $23.27
499+ $22.96
999+ $22.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
40mm
Technical
--- Dimensions
d1 60mm
d 65mm
d3 85mm
B1 40mm
B2 13.5mm
G Thread 65x2mm
Weight 0.36 kg
--- Assembly Parts
Sleeve H213
Nut KM13
Washer MB13
Hydraulic nut HMV13E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1213K+taper+self+open>1213K</a>
