• SKF H219 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
1 1

SKU: H219-SKF

SKF H219 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft

SKF H219 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
$142.18 ex VAT
$142.18 ex VAT
Sale Sold out

In stock

Price Break
2+ $95.24
5+ $89.89
10+ $88.82
20+ $87.75
49+ $86.68
74+ $85.61
99+ $80.26
199+ $79.19
249+ $78.12
499+ $77.05
999+ $74.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
85mm
Outside Diameter:
125mm
Width:
55mm
Technical
--- Dimensions
d1 85mm
d 95mm
d3 125mm
B1 55mm
B2 19mm
G Thread 95x2mm
Weight 1.25 kg

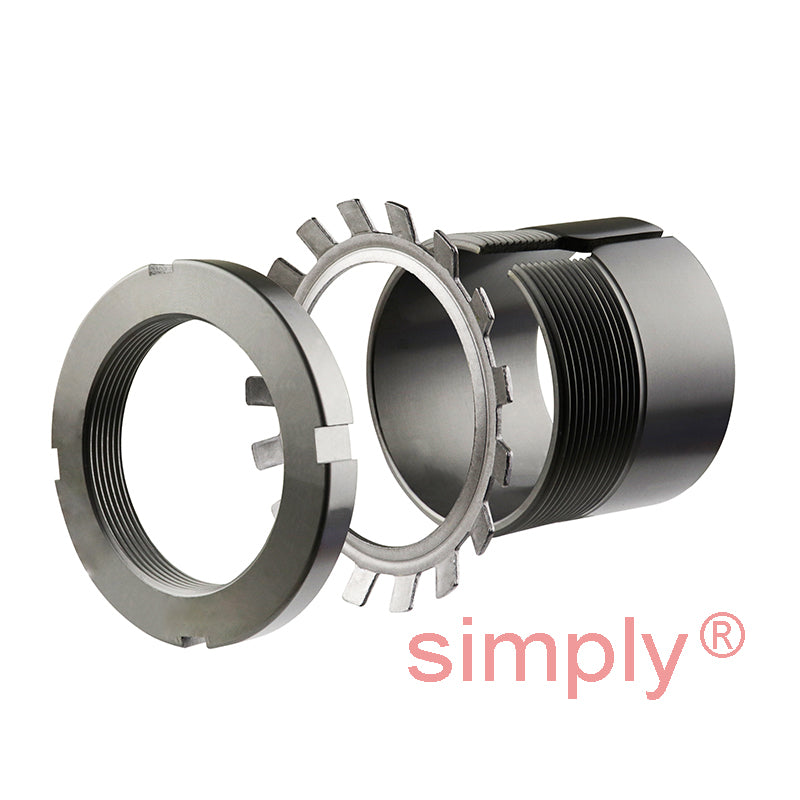

--- Assembly Parts
Sleeve H219
Nut KM19
Washer MB19
Hydraulic nut HMV19E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1219K+taper+self+open>1219K</a>
