SKU: H247549D/H247510/H247510EA-TIM

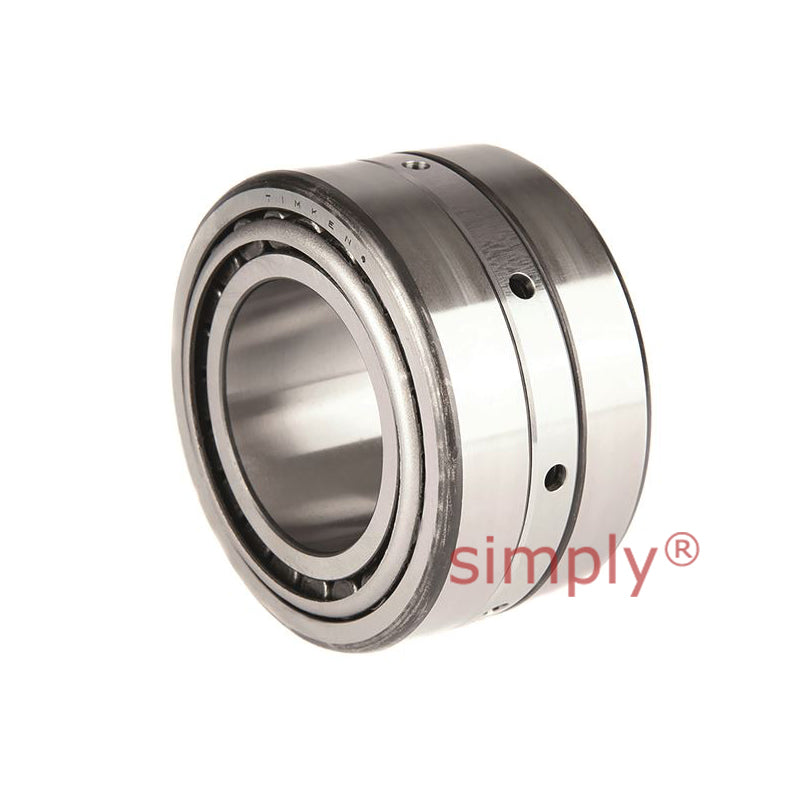

Timken H247549D/H247510/H247510EA TDI Double Inner Race Taper Roller Bearing 9.25x15.125x8.25x8.25 inch
Timken H247549D/H247510/H247510EA TDI Double Inner Race Taper Roller Bearing 9.25x15.125x8.25x8.25 inch
Out of stock
Description
Description

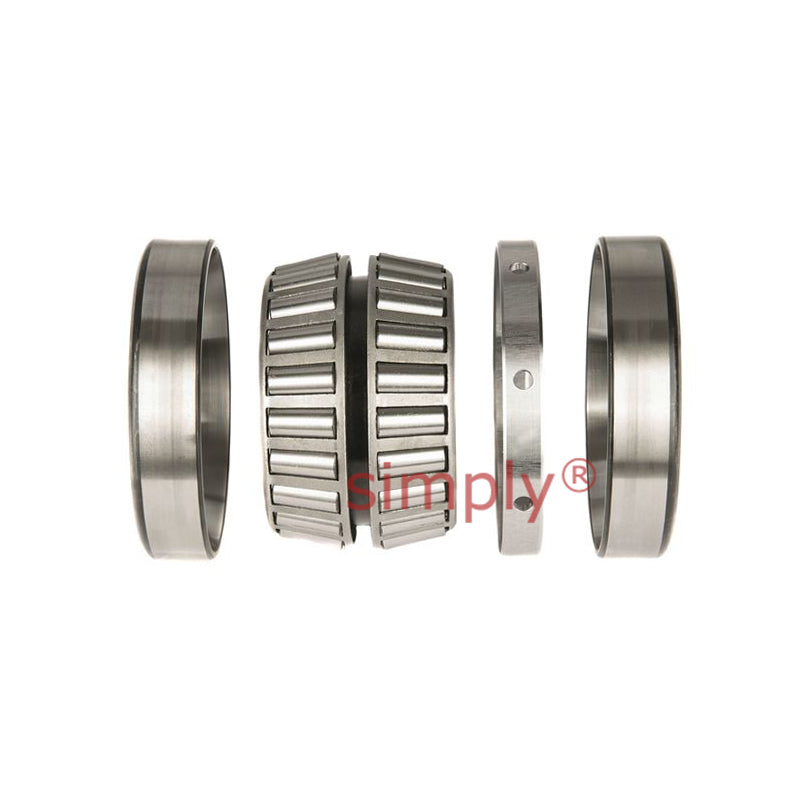

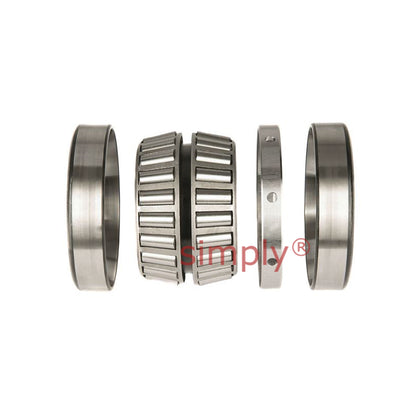

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 234.95mm = 9.25 (9-1/4) inch
- Outside Diameter:
- 384.18mm = 15.125 (15-1/8) inch
- Width:
- 209.55mm = 8.25 (8-1/4) inch
Technical
Technical
| d | 234.95mm = 9.25 inch |
|---|---|
| D | 384.175mm = 15.125 inch |
| T | 209.55mm = 8.25 inch |
| C | 209.55mm = 8.25 inch |
| Dynamic (1) C1 | 2860000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 426000N |
| Dynamic (2) Ca90 | 242000N |
| Dynamic (2) C90(2) | 741000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 259mm = 10.2 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 346mm = 13.62 inch |
| G1 | 1960 |
| G2 | 148 |
| Cg | 0.1638 |
