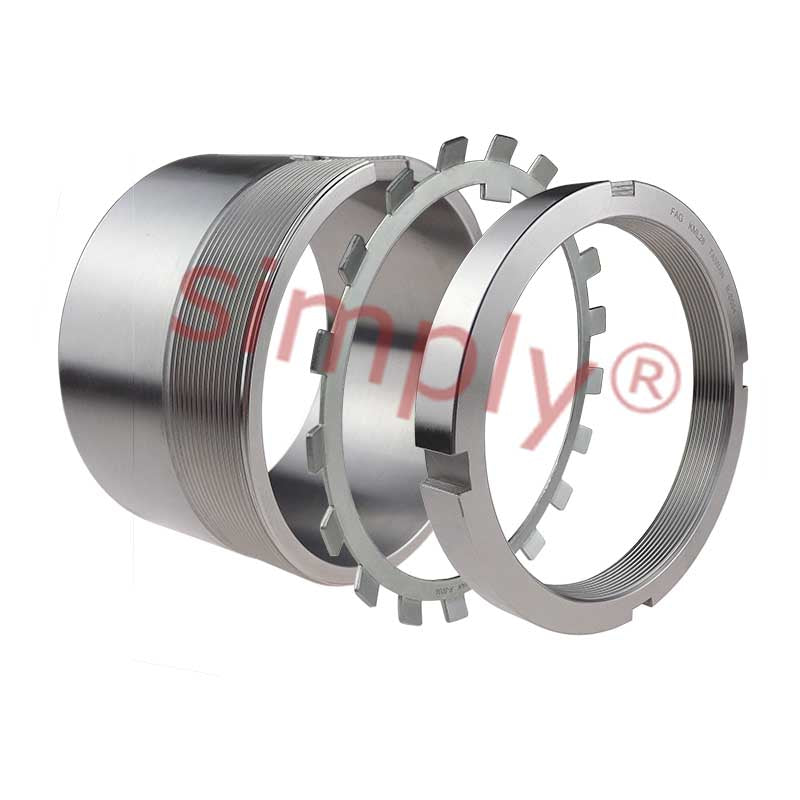

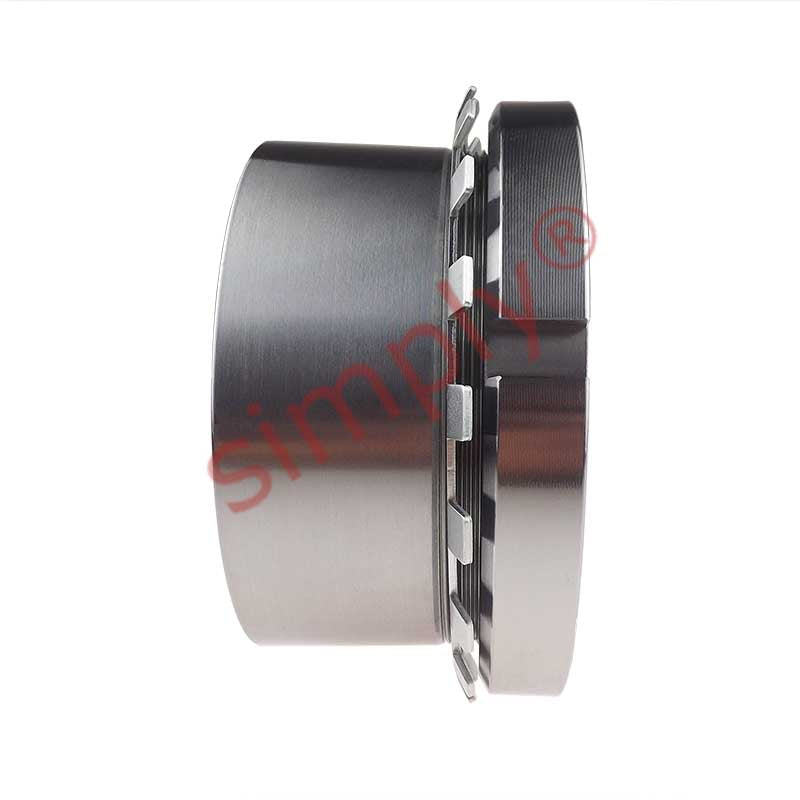

• FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
  • FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
  • FAG
1 3

SKU: H3028-FAG

FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft

FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
$272.91 ex VAT
$272.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $182.81
19+ $172.54
29+ $170.48
39+ $168.43
49+ $166.37
74+ $164.32
99+ $154.05
199+ $152.00
249+ $149.94
499+ $147.89
999+ $143.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
FAG - High Quality
Inside Diameter:
125mm
Outside Diameter:
165mm
Width:
82mm
Technical
--- Dimensions
d1 125mm
d 165mm
d3 165mm
B1 82mm
B2 24mm
G Thread 140x2mm
Weight 3.05 kg
--- Assembly Parts
Sleeve H2028
Nut KML28
Washer MBL28
Reviews
View full details
