SKU: H305C-SKF

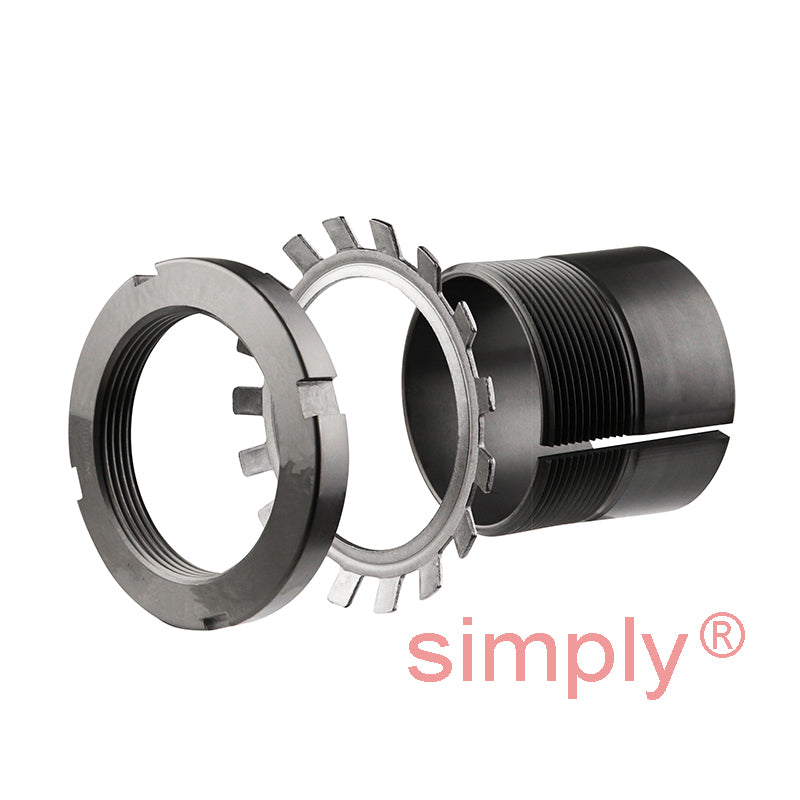

SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft

Name: SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
Brand: SKF
SKU: H305C-SKF
Price: 40.67 USD
Availability: InStock

$40.67 ex VAT

Sale Sold out

In stock

Price Break

2+ $27.25

5+ $25.72

10+ $25.41

20+ $25.10

49+ $24.80

74+ $24.49

99+ $22.96

199+ $22.65

249+ $22.35

499+ $22.04

999+ $21.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 38mm
Width:: 29mm

Technical

---	Dimensions
d1	20mm
d	25mm
d3	38mm
B1	29mm
B2	9mm
G	Thread 25x1.5mm
Weight	0.071 kg
---	Assembly Parts
Sleeve	H305C
Nut	KM5
Washer	MB5C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2205K-2RS+taper>2205K-2RS</a>
