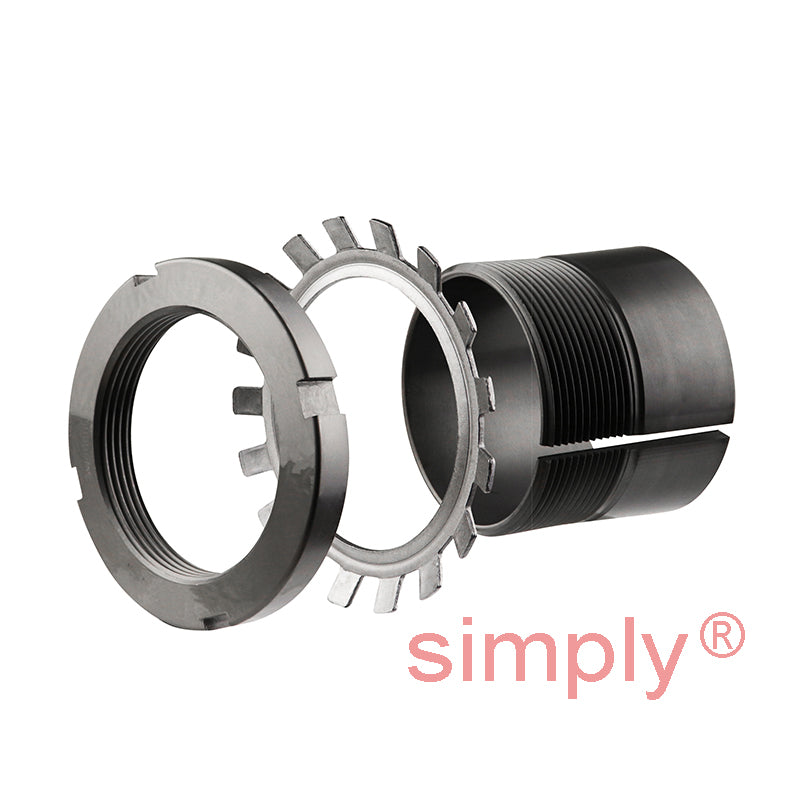

SKF H306C Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft

Name: SKF H306C Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Brand: SKF
SKU: H306C-SKF
Price: 31.25 USD
Availability: InStock

$31.25 ex VAT

Sale Sold out

In stock

Price Break

2+ $20.94

5+ $19.76

10+ $19.52

20+ $19.29

49+ $19.05

74+ $18.82

99+ $17.64

199+ $17.41

249+ $17.17

499+ $16.94

999+ $16.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 45mm
Width:: 31mm

Technical

---	Dimensions
d1	25mm
d	30mm
d3	45mm
B1	31mm
B2	9mm
G	Thread 30x1.5mm
Weight	0.095 kg
---	Assembly Parts
Sleeve	H306C
Nut	KM6
Washer	MB6C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2206K-2RS+taper>2206K-2RS</a>
