SKU: H306E-SKF

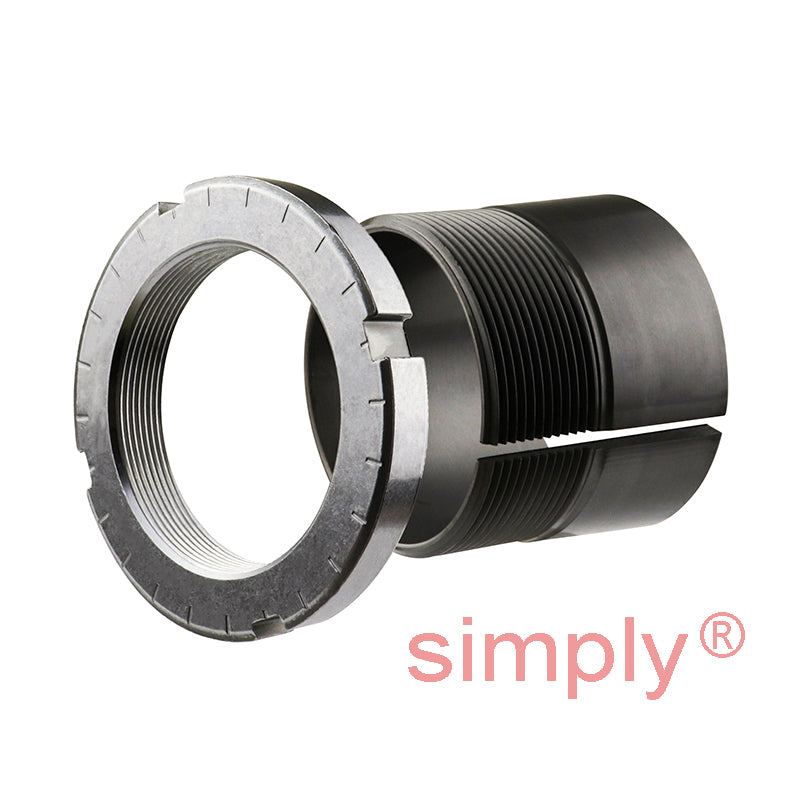

SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft

Name: SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Brand: SKF
SKU: H306E-SKF
Price: 88.23 USD
Availability: InStock

$88.23 ex VAT

Sale Sold out

In stock

Price Break

2+ $59.10

5+ $55.78

10+ $55.11

20+ $54.45

49+ $53.78

74+ $53.12

99+ $49.80

199+ $49.14

249+ $48.47

499+ $47.81

999+ $46.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 45mm
Width:: 31mm

Technical

---	Dimensions
d1	25mm
d	30mm
d3	45mm
B1	31mm
B2	10.5mm
G	Thread 30x1.5mm
Weight	0.11 kg
---	Assembly Parts
Sleeve	H306E
Nut	KMFE6
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206KTN9+taper>C2206KTN9</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206K+taper>C2206K</a>
