• SKF H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
1 1

SKU: H307-SKF

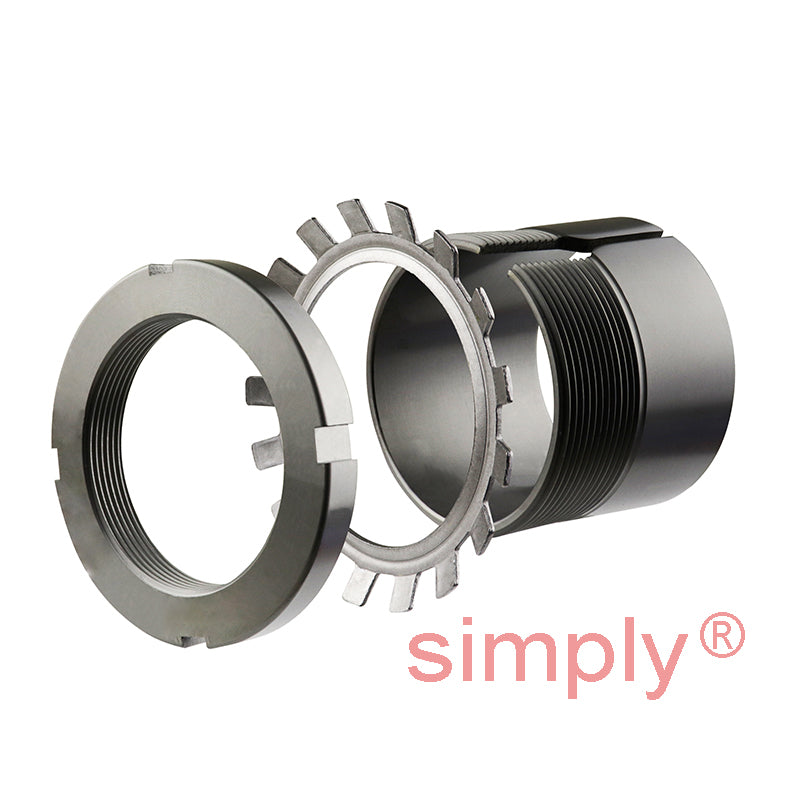

SKF H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

SKF H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
$24.33 ex VAT
$24.33 ex VAT
Sale Sold out

In stock

Price Break
2+ $16.30
5+ $15.38
10+ $15.20
20+ $15.02
49+ $14.83
74+ $14.65
99+ $13.74
199+ $13.55
249+ $13.37
499+ $13.19
999+ $12.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
52mm
Width:
35mm
Technical
--- Dimensions
d1 30mm
d 35mm
d3 52mm
B1 35mm
B2 9mm
G Thread 35x1.5mm
Weight 0.14 kg
--- Assembly Parts
Sleeve H307
Nut KM7
Washer MB7
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2207K+taper+self+open>2207K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1307K+taper+self+open>1307K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22207K+taper>22207K</a>
