SKU: H307C-SKF

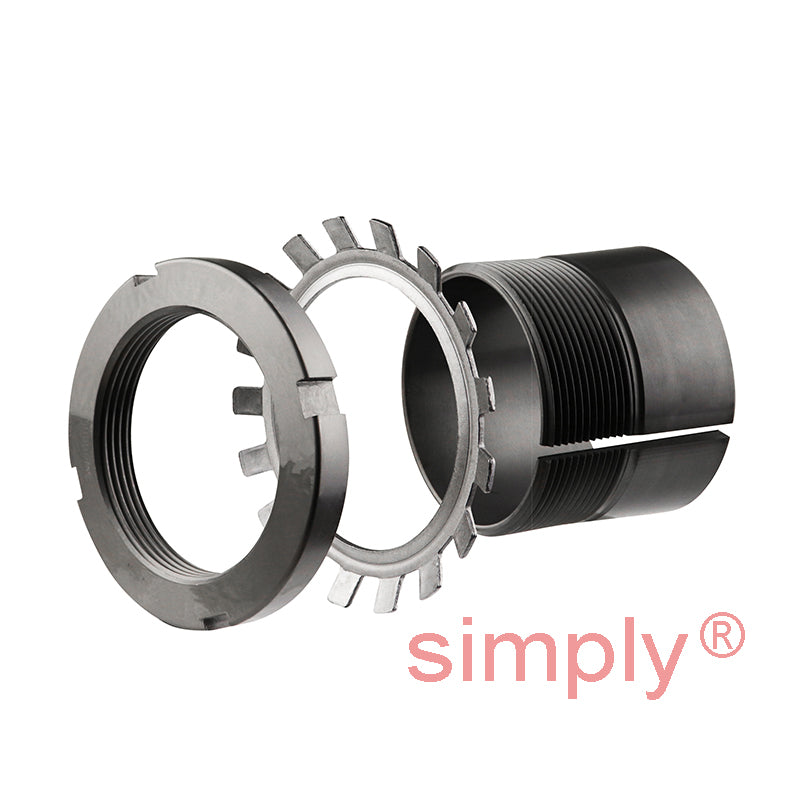

SKF H307C Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

Name: SKF H307C Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Brand: SKF
SKU: H307C-SKF
Price: 36.42 USD
Availability: InStock

$36.42 ex VAT

Sale Sold out

In stock

Price Break

2+ $24.40

5+ $23.03

10+ $22.75

20+ $22.48

49+ $22.20

74+ $21.93

99+ $20.56

199+ $20.29

249+ $20.01

499+ $19.74

999+ $19.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 52mm
Width:: 35mm

Technical

---	Dimensions
d1	30mm
d	35mm
d3	52mm
B1	35mm
B2	10mm
G	Thread 35x1.5mm
Weight	0.14 kg
---	Assembly Parts
Sleeve	H307C
Nut	KM7
Washer	MB7C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2207K-2RS+taper>2207K-2RS</a>
