SKU: H307E-SKF

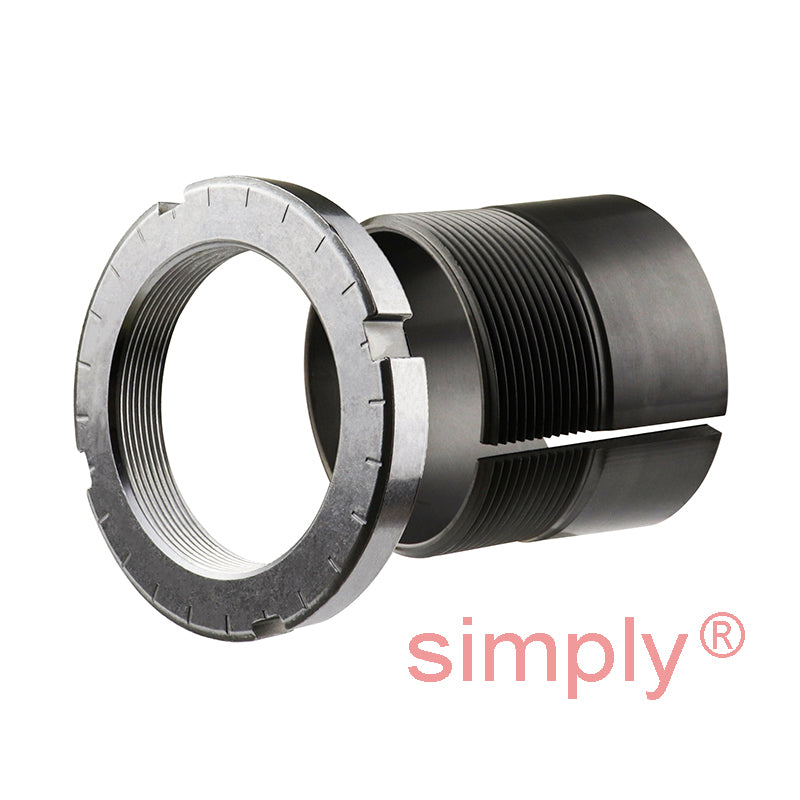

SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

Name: SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Brand: SKF
SKU: H307E-SKF
Price: 57.59 USD
Availability: InStock

$57.59 ex VAT

Sale Sold out

In stock

Price Break

2+ $38.58

5+ $36.41

10+ $35.97

20+ $35.54

49+ $35.11

74+ $34.67

99+ $32.51

199+ $32.07

249+ $31.64

499+ $31.21

999+ $30.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 52mm
Width:: 35mm

Technical

---	Dimensions
d1	30mm
d	35mm
d3	52mm
B1	35mm
B2	11.5mm
G	Thread 35x1.5mm
Weight	0.15 kg
---	Assembly Parts
Sleeve	H307E
Nut	KMFE7
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207KTN9+taper>C2207KTN9</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207K+taper>C2207K</a>
