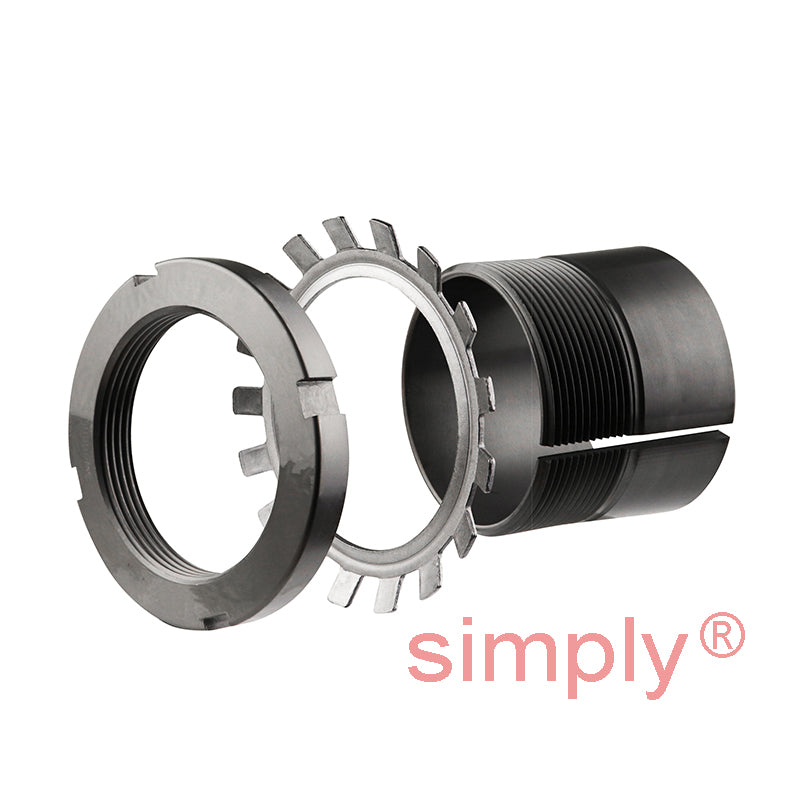

SKF H308C Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

Name: SKF H308C Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Brand: SKF
SKU: H308C-SKF
Price: 40.72 USD
Availability: InStock

$40.72 ex VAT

Sale Sold out

In stock

Price Break

2+ $27.28

5+ $25.75

10+ $25.44

20+ $25.13

49+ $24.83

74+ $24.52

99+ $22.99

199+ $22.68

249+ $22.38

499+ $22.07

999+ $21.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 36mm

Technical

---	Dimensions
d1	35mm
d	40mm
d3	58mm
B1	36mm
B2	11mm
G	Thread 40x1.5mm
Weight	0.17 kg
---	Assembly Parts
Sleeve	H308C
Nut	KM8
Washer	MB8C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2208K-2RS+taper>2208K-2RS</a>
