SKU: H308E-SKF

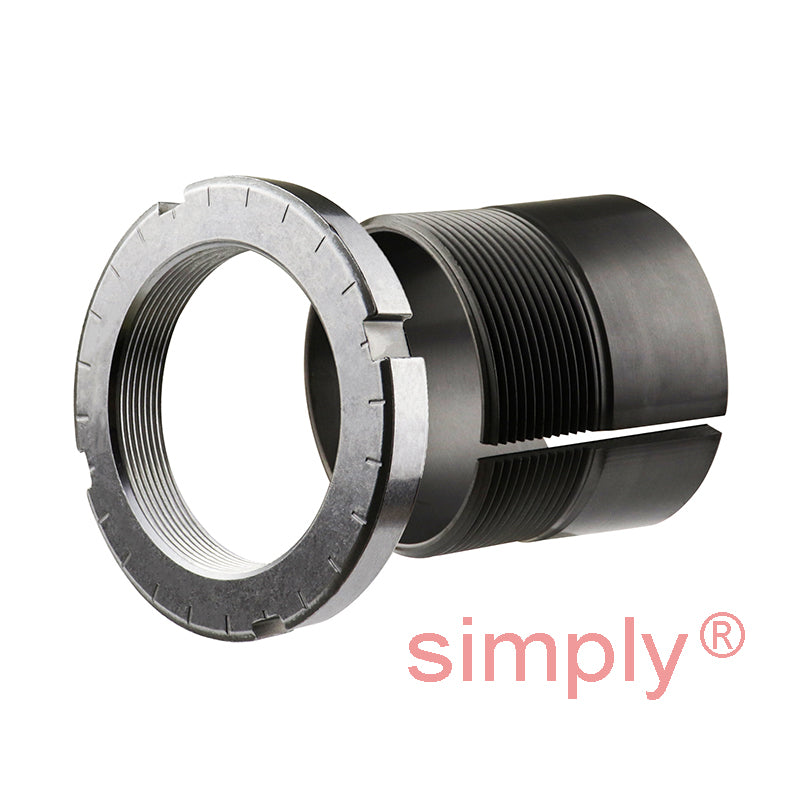

SKF H308E Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

Name: SKF H308E Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Brand: SKF
SKU: H308E-SKF
Price: 49.73 USD
Availability: InStock

$49.73 ex VAT

Sale Sold out

In stock

Price Break

2+ $33.32

5+ $31.44

10+ $31.07

20+ $30.70

49+ $30.32

74+ $29.95

99+ $28.08

199+ $27.70

249+ $27.33

499+ $26.95

999+ $26.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 36mm

Technical

---	Dimensions
d1	35mm
d	40mm
d3	58mm
B1	36mm
B2	13mm
G	Thread 40x1.5mm
Weight	0.19 kg
---	Assembly Parts
Sleeve	H308E
Nut	KMFE8
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2208KTN9+taper>C2208KTN9</a>
