SKU: H309E-SKF

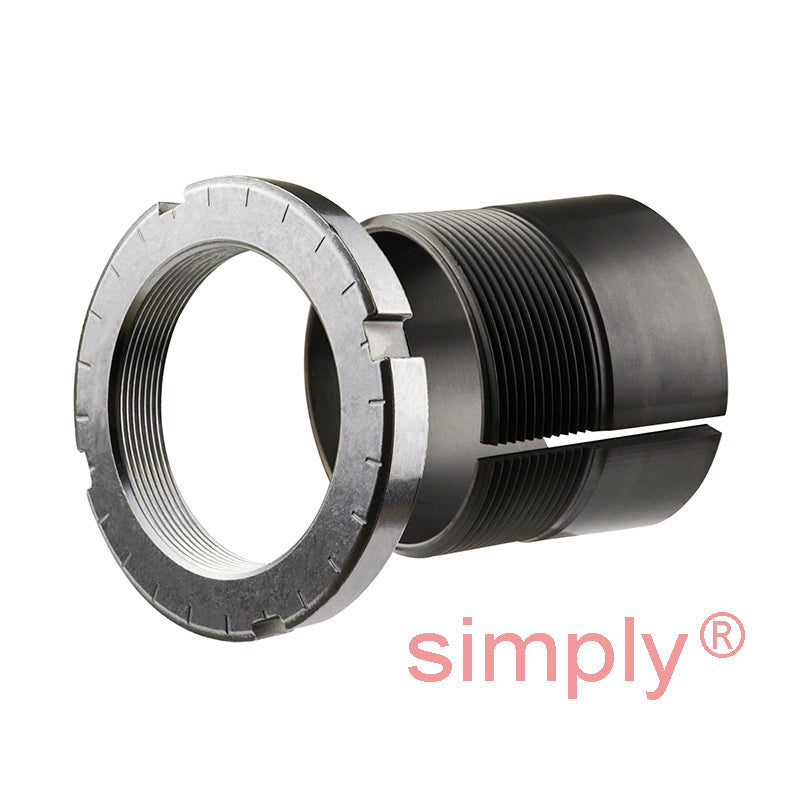

SKF H309E Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft

Name: SKF H309E Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
Brand: SKF
SKU: H309E-SKF
Price: 41.36 USD
Availability: InStock

$41.36 ex VAT

Sale Sold out

In stock

Price Break

2+ $27.71

5+ $26.15

10+ $25.84

20+ $25.53

49+ $25.22

74+ $24.91

99+ $23.35

199+ $23.04

249+ $22.73

499+ $22.42

999+ $21.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 65mm
Width:: 39mm

Technical

---	Dimensions
d1	40mm
d	45mm
d3	65mm
B1	39mm
B2	13mm
G	Thread 45x1.5mm
Weight	0.24 kg
---	Assembly Parts
Sleeve	H309E
Nut	KMFE9
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KTN9+taper>C2209KTN9</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209K+taper>C2209K</a>
