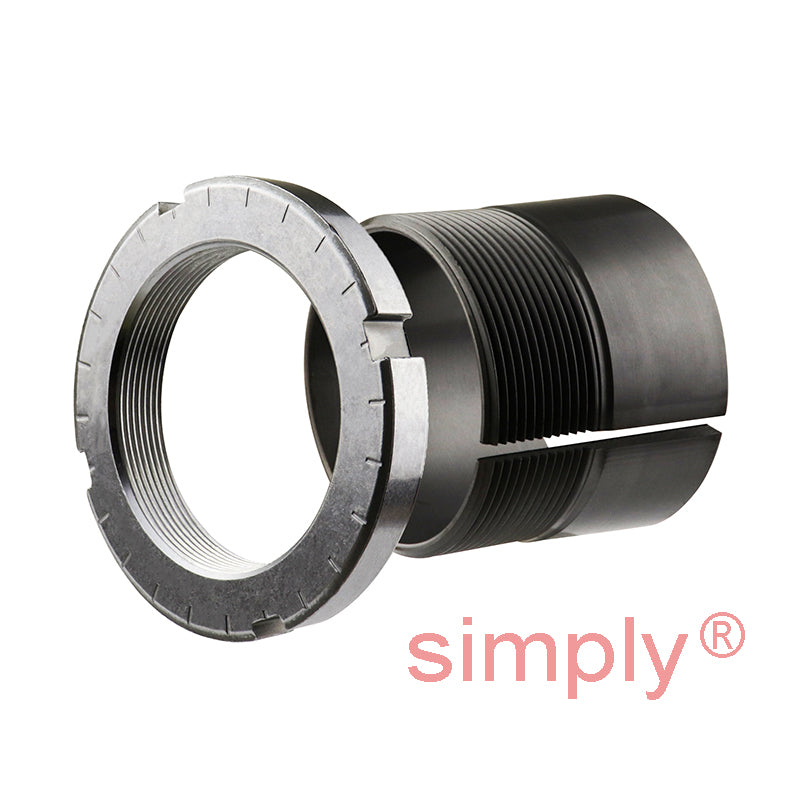

SKF H310E Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

Name: SKF H310E Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
Brand: SKF
SKU: H310E-SKF
Price: 42.92 USD
Availability: InStock

$42.92 ex VAT

Sale Sold out

In stock

Price Break

2+ $28.75

5+ $27.13

10+ $26.81

20+ $26.48

49+ $26.16

74+ $25.84

99+ $24.22

199+ $23.90

249+ $23.58

499+ $23.25

999+ $22.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 70mm
Width:: 42mm

Technical

---	Dimensions
d1	45mm
d	50mm
d3	70mm
B1	42mm
B2	14mm
G	Thread 50x1.5mm
Weight	0.3 kg
---	Assembly Parts
Sleeve	H310E
Nut	KMFE10
Hydraulic nut	HMV10E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KTN9+taper>C2210KTN9</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210K+taper>C2210K</a>
