SKU: H311E-SKF

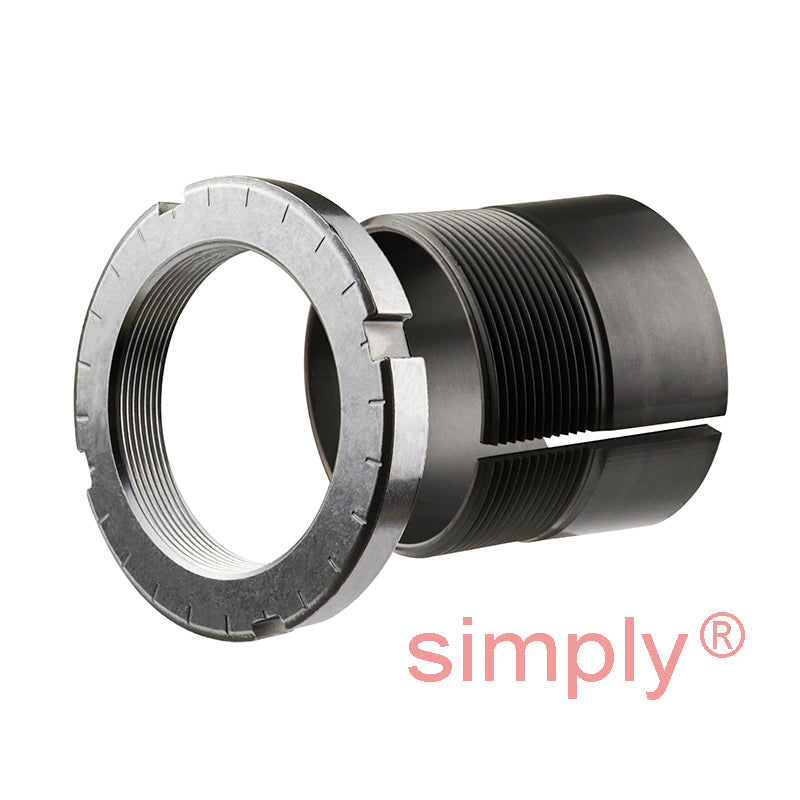

SKF H311E Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft

Name: SKF H311E Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
Brand: SKF
SKU: H311E-SKF
Price: 44.19 USD
Availability: InStock

$44.19 ex VAT

Sale Sold out

In stock

Price Break

2+ $29.60

5+ $27.94

10+ $27.61

20+ $27.28

49+ $26.94

74+ $26.61

99+ $24.95

199+ $24.61

249+ $24.28

499+ $23.95

999+ $23.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 75mm
Width:: 45mm

Technical

---	Dimensions
d1	50mm
d	55mm
d3	75mm
B1	45mm
B2	14mm
G	Thread 55x2mm
Weight	0.34 kg
---	Assembly Parts
Sleeve	H311E
Nut	KMFE11
Hydraulic nut	HMV11E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2211KTN9+taper>C2211KTN9</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2211K+taper>C2211K</a>
