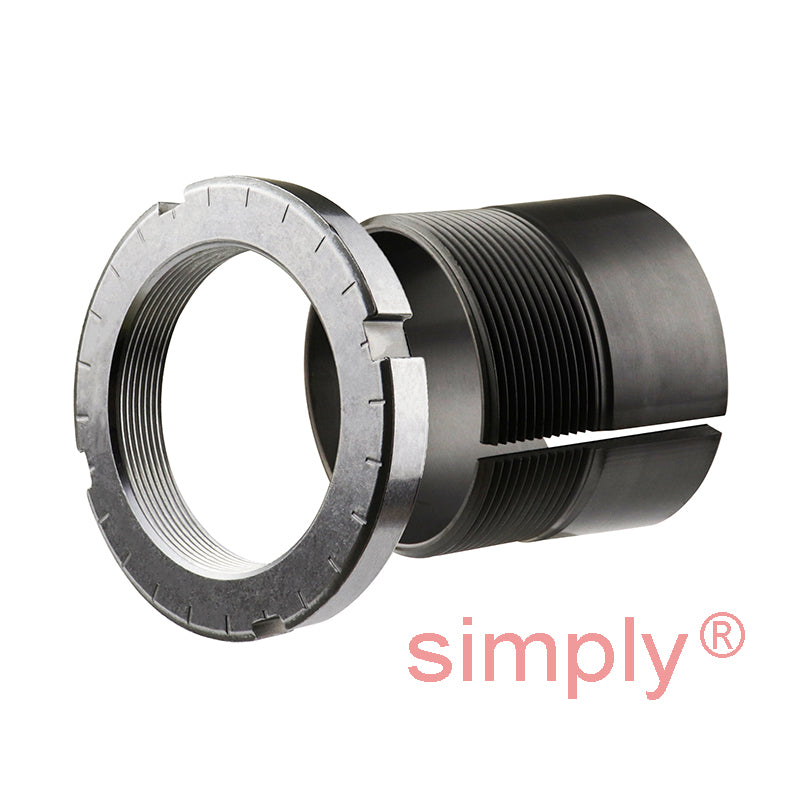

• SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
1 1

SKU: H312E-SKF

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
$54.74 ex VAT
$54.74 ex VAT
Sale Sold out

In stock

Price Break
2+ $36.66
5+ $34.60
10+ $34.19
20+ $33.78
49+ $33.37
74+ $32.96
99+ $30.90
199+ $30.48
249+ $30.07
499+ $29.66
999+ $28.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
47mm
Technical
--- Dimensions
d1 55mm
d 60mm
d3 80mm
B1 47mm
B2 14mm
G Thread 60x2mm
Weight 0.4 kg
--- Assembly Parts
Sleeve H312E
Nut KMFE12
Hydraulic nut HMV12E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2212KTN9+taper>C2212KTN9</a>
