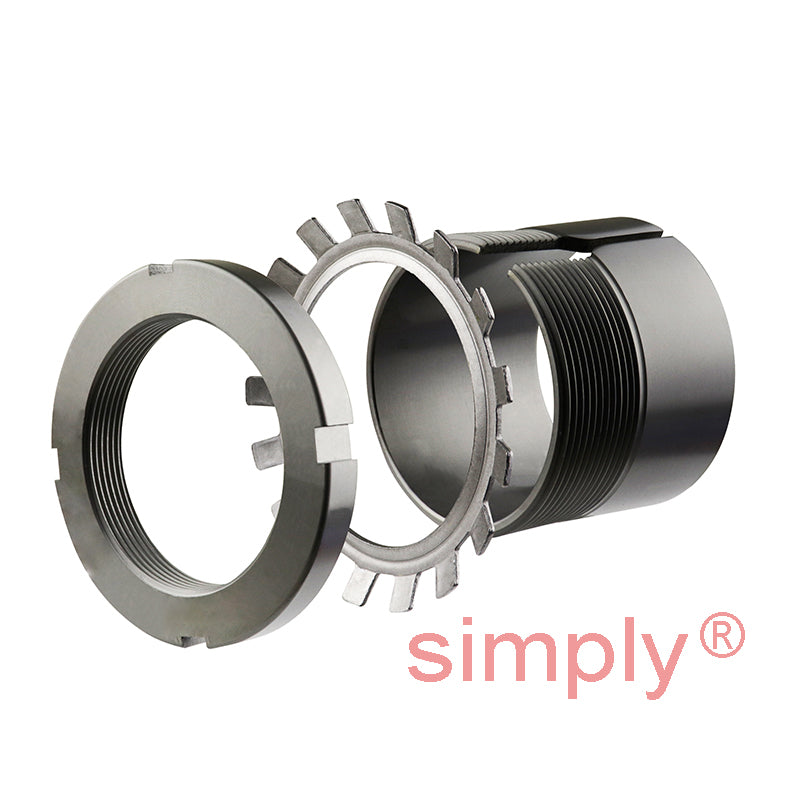

• SKF H3136 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
1 1

SKU: H3136-SKF

SKF H3136 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft

SKF H3136 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
$548.70 ex VAT
$548.70 ex VAT
Sale Sold out

In stock

Price Break
2+ $367.53
5+ $346.88
10+ $342.75
20+ $338.62
49+ $334.49
74+ $330.36
99+ $309.72
199+ $305.59
249+ $301.46
499+ $297.33
999+ $289.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
160mm
Outside Diameter:
230mm
Width:
131mm
Technical
--- Dimensions
d1 160mm
d 180mm
d3 230mm
B1 131mm
B2 29.5mm
G Thread 180x3mm
Weight 9.15 kg
--- Assembly Parts
Sleeve H3136
Nut KM36
Washer MB36
Hydraulic nut HMV36E
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23136K+taper>23136K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22236K+taper>22236K</a>
