SKU: H3138-SKF

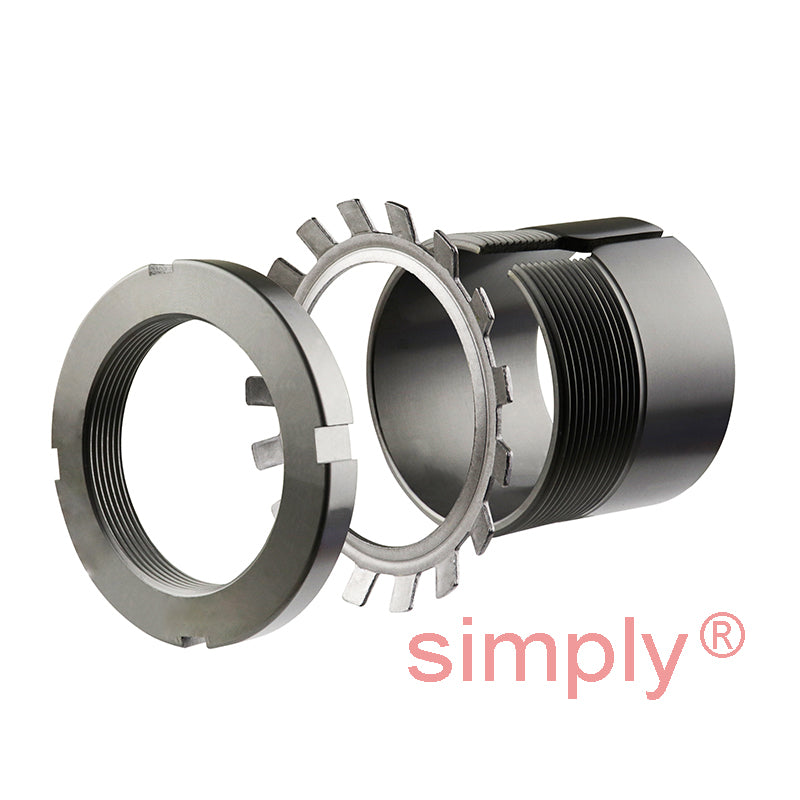

SKF H3138 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft

Name: SKF H3138 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Brand: SKF
SKU: H3138-SKF
Price: 594.10 USD
Availability: InStock

$594.10 ex VAT

Sale Sold out

In stock

Price Break

2+ $397.95

5+ $375.59

10+ $371.12

20+ $366.65

49+ $362.18

74+ $357.71

99+ $335.35

199+ $330.88

249+ $326.41

499+ $321.94

999+ $312.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 170mm
Outside Diameter:: 240mm
Width:: 141mm

Technical

---	Dimensions
d1	170mm
d	190mm
d3	240mm
B1	141mm
B2	30.5mm
G	Thread 190x3mm
Weight	10.5 kg
---	Assembly Parts
Sleeve	H3138
Nut	KM38
Washer	MB38
Hydraulic nut	HMV38E
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23138K+taper>23138K</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22238K+taper>22238K</a>
