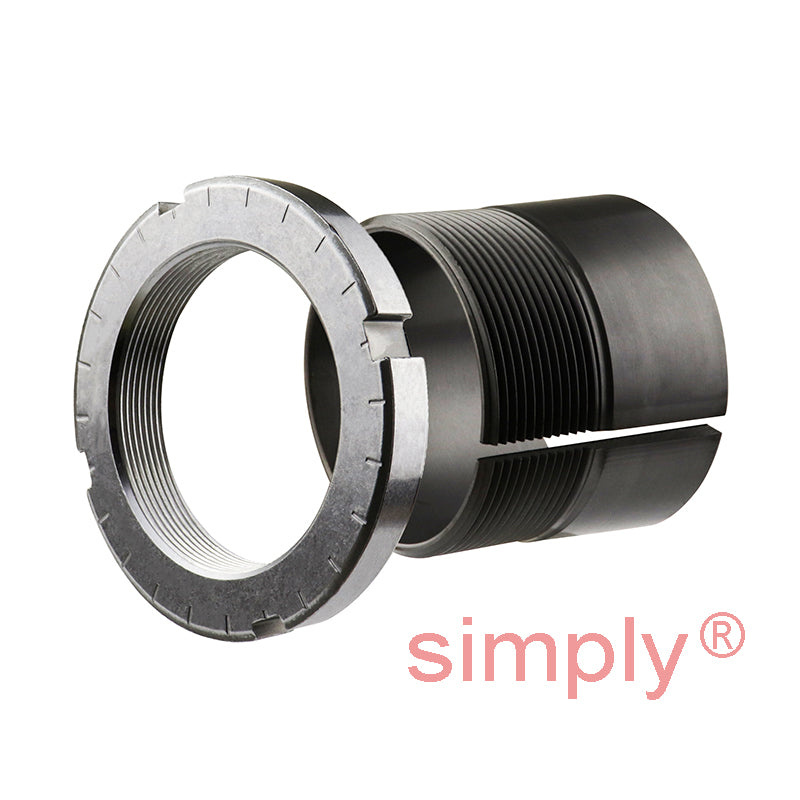

• SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
1 1

SKU: H313E-SKF

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
$74.45 ex VAT
$74.45 ex VAT
Sale Sold out

In stock

Price Break
2+ $49.86
5+ $47.06
10+ $46.50
20+ $45.94
49+ $45.38
74+ $44.82
99+ $42.02
199+ $41.46
249+ $40.90
499+ $40.34
999+ $39.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
50mm
Technical
--- Dimensions
d1 60mm
d 65mm
d3 85mm
B1 50mm
B2 15mm
G Thread 65x2mm
Weight 0.43 kg
--- Assembly Parts
Sleeve H313E
Nut KMFE13
Hydraulic nut HMV13E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213KTN9+taper>C2213KTN9</a>
