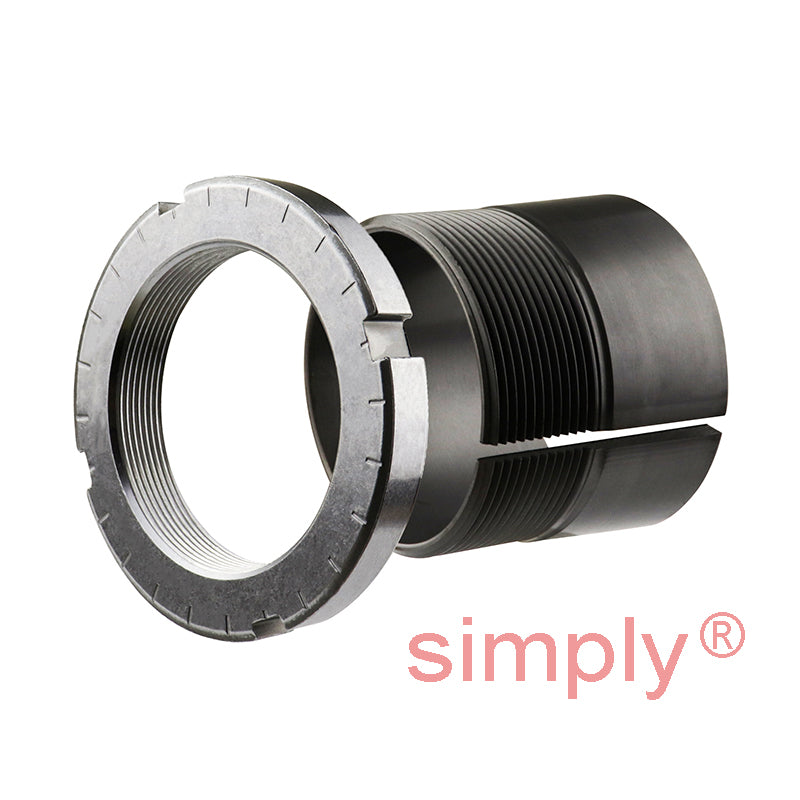

• SKF H314E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
1 1

SKU: H314E-SKF

SKF H314E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

SKF H314E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
$81.66 ex VAT
$81.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $54.70
5+ $51.63
10+ $51.01
20+ $50.40
49+ $49.78
74+ $49.17
99+ $46.09
199+ $45.48
249+ $44.87
499+ $44.25
999+ $43.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
92mm
Width:
52mm
Technical
--- Dimensions
d1 60mm
d 70mm
d3 92mm
B1 52mm
B2 15mm
G Thread 70x2mm
Weight 0.67 kg
--- Assembly Parts
Sleeve H314E
Nut KMFE14
Hydraulic nut HMV14E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2214KTN9+taper>C2214KTN9</a>
