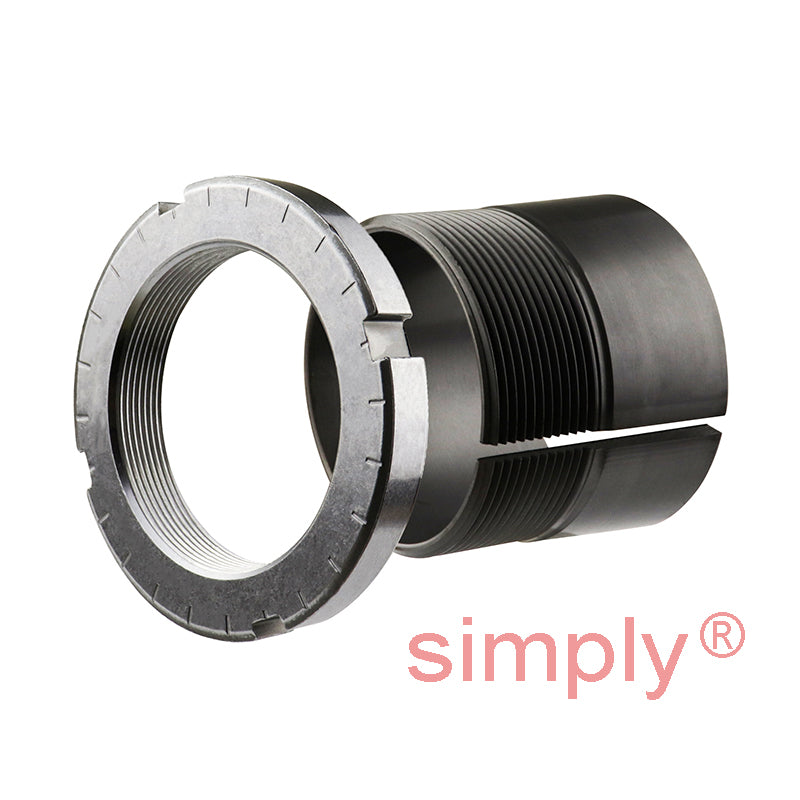

SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft

Name: SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
Brand: SKF
SKU: H315E-SKF
Price: 85.54 USD
Availability: InStock

$85.54 ex VAT

Sale Sold out

In stock

Price Break

2+ $57.30

5+ $54.08

10+ $53.44

20+ $52.79

49+ $52.15

74+ $51.51

99+ $48.29

199+ $47.64

249+ $47.00

499+ $46.36

999+ $45.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 98mm
Width:: 55mm

Technical

---	Dimensions
d1	65mm
d	75mm
d3	98mm
B1	55mm
B2	16mm
G	Thread 75x2mm
Weight	0.8 kg
---	Assembly Parts
Sleeve	H315E
Nut	KMFE15
Hydraulic nut	HMV15E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2215K+taper>C2215K</a>
