• SKF H316E Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
1 1

SKU: H316E-SKF

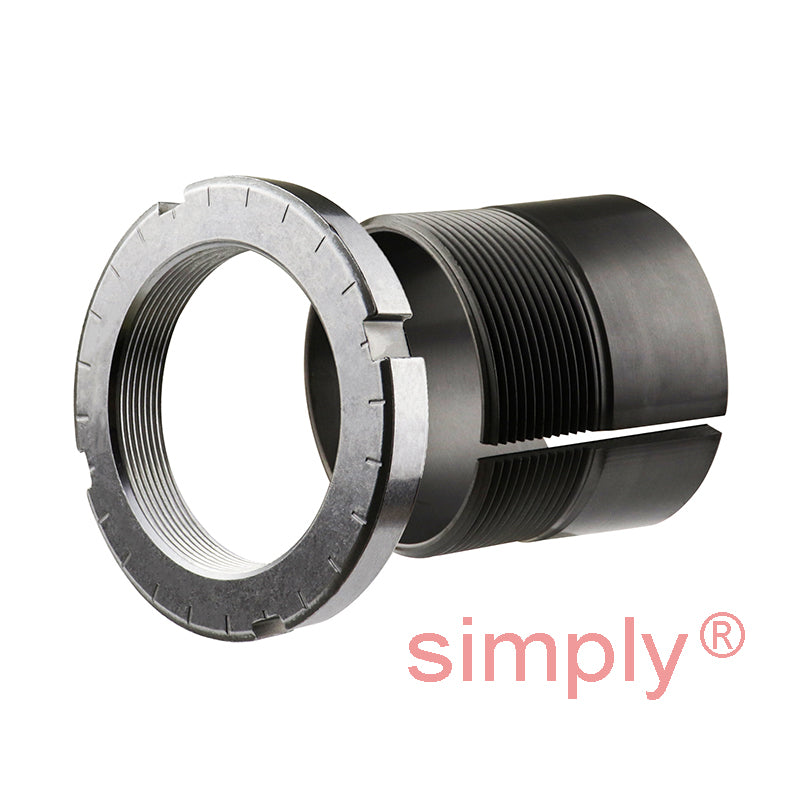

SKF H316E Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft

SKF H316E Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
$92.28 ex VAT
$92.28 ex VAT
Sale Sold out

In stock

Price Break
2+ $61.81
5+ $58.33
10+ $57.64
20+ $56.95
49+ $56.25
74+ $55.56
99+ $52.08
199+ $51.39
249+ $50.70
499+ $50.00
999+ $48.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
70mm
Outside Diameter:
105mm
Width:
59mm
Technical
--- Dimensions
d1 70mm
d 80mm
d3 105mm
B1 59mm
B2 18mm
G Thread 80x2mm
Weight 1.01 kg
--- Assembly Parts
Sleeve H316E
Nut KMFE16
Hydraulic nut HMV16E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2216K+taper>C2216K</a>
