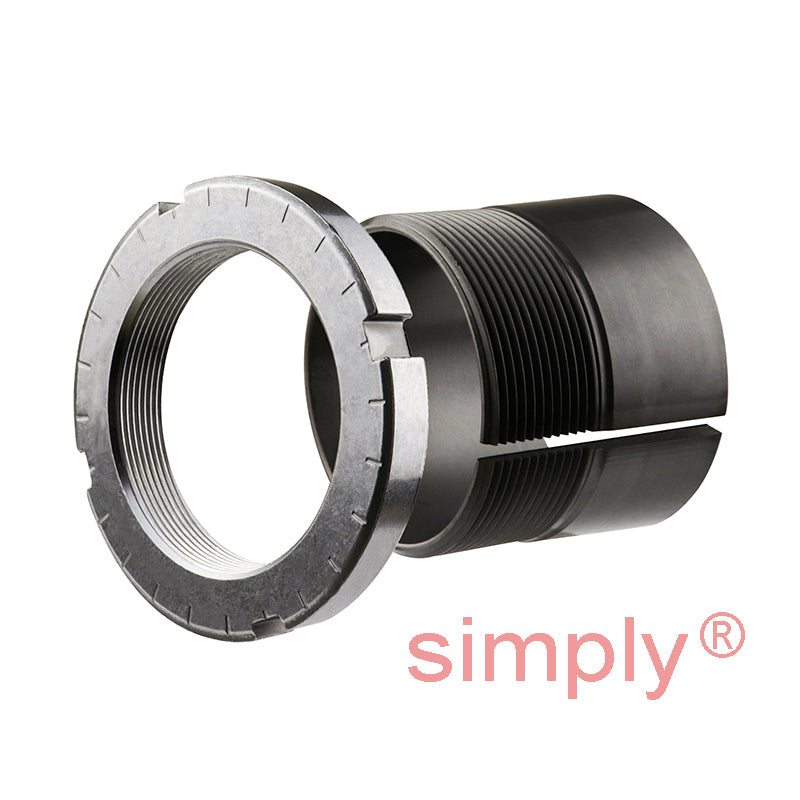

• SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
1 1

SKU: H317E-SKF

SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft

SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
$98.64 ex VAT
$98.64 ex VAT
Sale Sold out

In stock

Price Break
2+ $66.08
5+ $62.36
10+ $61.62
20+ $60.88
49+ $60.14
74+ $59.39
99+ $55.68
199+ $54.94
249+ $54.20
499+ $53.45
999+ $51.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
110mm
Width:
63mm
Technical
--- Dimensions
d1 75mm
d 85mm
d3 110mm
B1 63mm
B2 19mm
G Thread 85x2mm
Weight 1.17 kg
--- Assembly Parts
Sleeve H317E
Nut KMFE17
Hydraulic nut HMV17E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217K+taper>C2217K</a>
