• SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
1 1

SKU: H318E-SKF

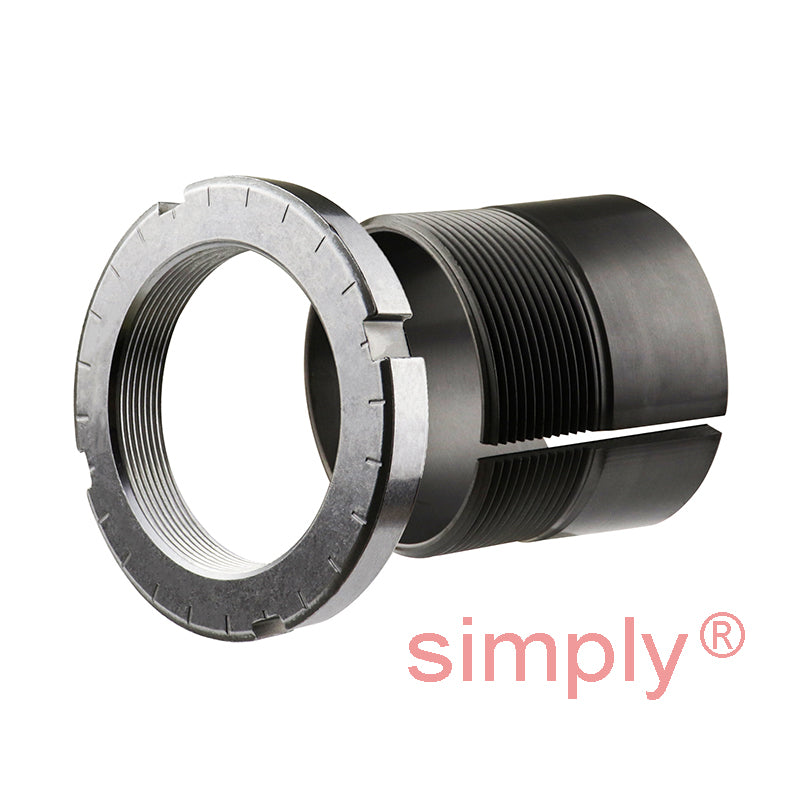

SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
$111.92 ex VAT
$111.92 ex VAT
Sale Sold out

In stock

Price Break
2+ $74.96
5+ $70.75
10+ $69.91
20+ $69.07
49+ $68.22
74+ $67.38
99+ $63.17
199+ $62.33
249+ $61.49
499+ $60.64
999+ $58.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
120mm
Width:
65mm
Technical
--- Dimensions
d1 80mm
d 90mm
d3 120mm
B1 65mm
B2 19mm
G Thread 90x2mm
Weight 1.43 kg
--- Assembly Parts
Sleeve H318E
Nut KMFE18
Hydraulic nut HMV18E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2218K+taper>C2218K</a>
