• SKF H320E Adaptor Sleeve with Lock Nut and Locking Device for 90mm Shaft
1 1

SKU: H320E-SKF

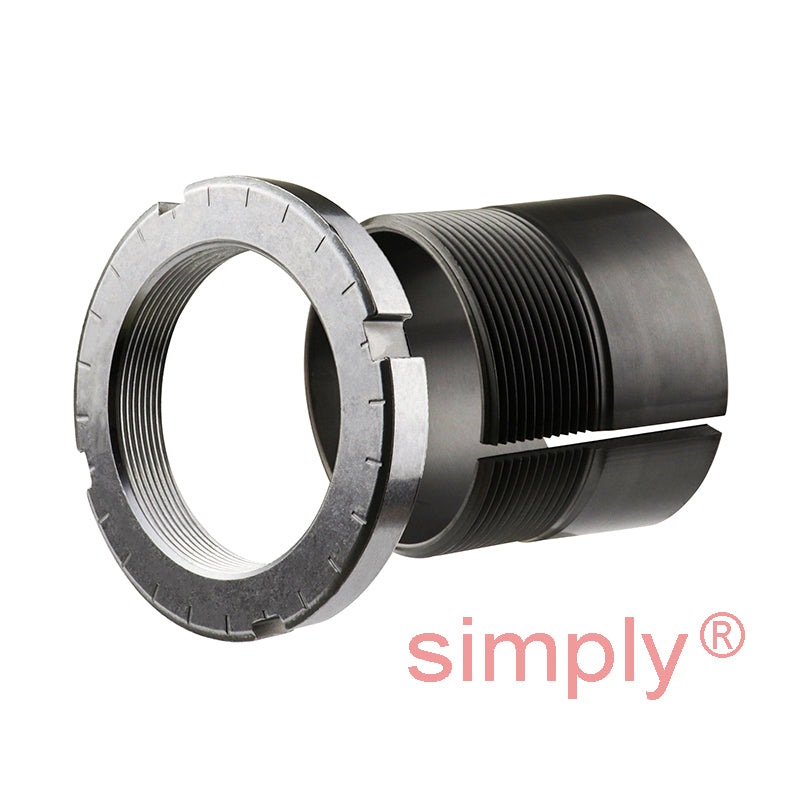

SKF H320E Adaptor Sleeve with Lock Nut and Locking Device for 90mm Shaft

SKF H320E Adaptor Sleeve with Lock Nut and Locking Device for 90mm Shaft
$136.78 ex VAT
$136.78 ex VAT
Sale Sold out

In stock

Price Break
2+ $91.62
5+ $86.47
10+ $85.44
20+ $84.41
49+ $83.38
74+ $82.35
99+ $77.20
199+ $76.17
249+ $75.15
499+ $74.12
999+ $72.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
130mm
Width:
71mm
Technical
--- Dimensions
d1 90mm
d 100mm
d3 130mm
B1 71mm
B2 21mm
G Thread 100x2mm
Weight 1.72 kg
--- Assembly Parts
Sleeve H320E
Nut KMFE20
Hydraulic nut HMV20E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2220K+taper>C2220K</a>
