SKU: H322E-SKF

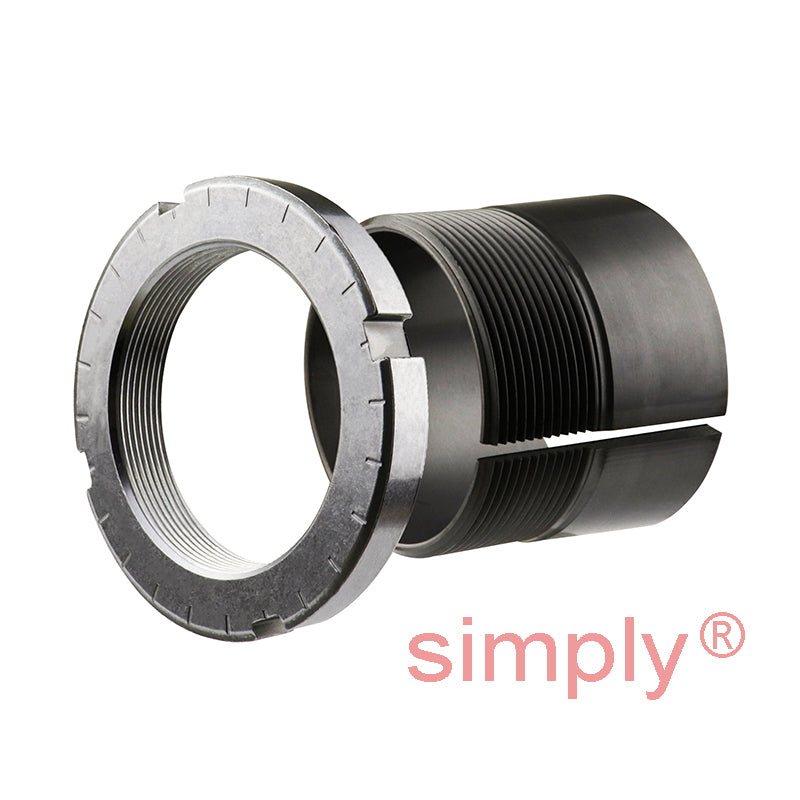

SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft

Name: SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Brand: SKF
SKU: H322E-SKF
Price: 186.93 USD
Availability: InStock

$186.93 ex VAT

Sale Sold out

In stock

Price Break

2+ $125.21

5+ $118.18

10+ $116.77

20+ $115.36

49+ $113.96

74+ $112.55

99+ $105.52

199+ $104.11

249+ $102.70

499+ $101.29

999+ $98.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 145mm
Width:: 77mm

Technical

---	Dimensions
d1	100mm
d	110mm
d3	145mm
B1	77mm
B2	21.5mm
G	Thread 110x2mm
Weight	2.11 kg
---	Assembly Parts
Sleeve	H322E
Nut	KMFE22
Hydraulic nut	HMV22E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3022K+taper>C3022K</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2222K+taper>C2222K</a>
