SKU: HC208

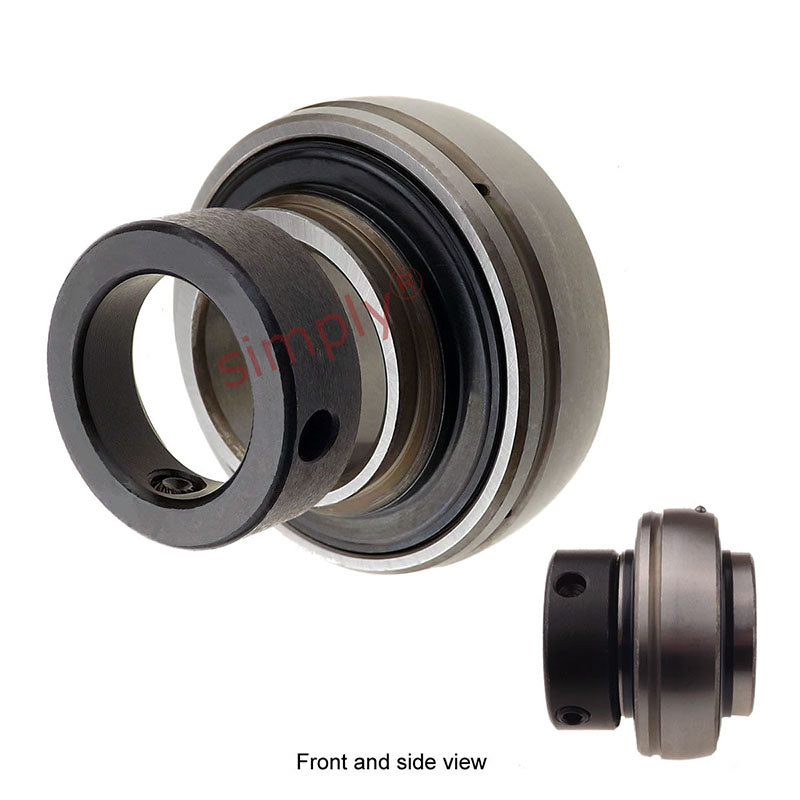

HC208 Eccentric Collar Full Width Insert 40mm Bore 80mm Outside Dia
HC208 Eccentric Collar Full Width Insert 40mm Bore 80mm Outside Dia
Regular price
$22.38
ex VAT
Regular price
Sale price
$22.38
ex VAT
Equivalent to: NA208
In stock
Price Break
3+
$14.98
4+
$14.14
9+
$13.97
19+
$13.81
49+
$13.64
99+
$13.47
499+
$12.63
999+
$12.46
1999+
$12.29
2999+
$12.12
4999+
$11.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- HC
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B1 | 56.3mm |
| B | 42.8mm |
| C | 21mm |
| s | 21.4mm |
| ds | M8x1 |
| G | 6.8mm |
| B5 | 18.3mm |
| d3 | 60.3mm |
| F | 6.2mm |
| Dynamic load | 3008 kgf |
| Static load | 1846 kgf |
| Weight | 0.79 kg |
