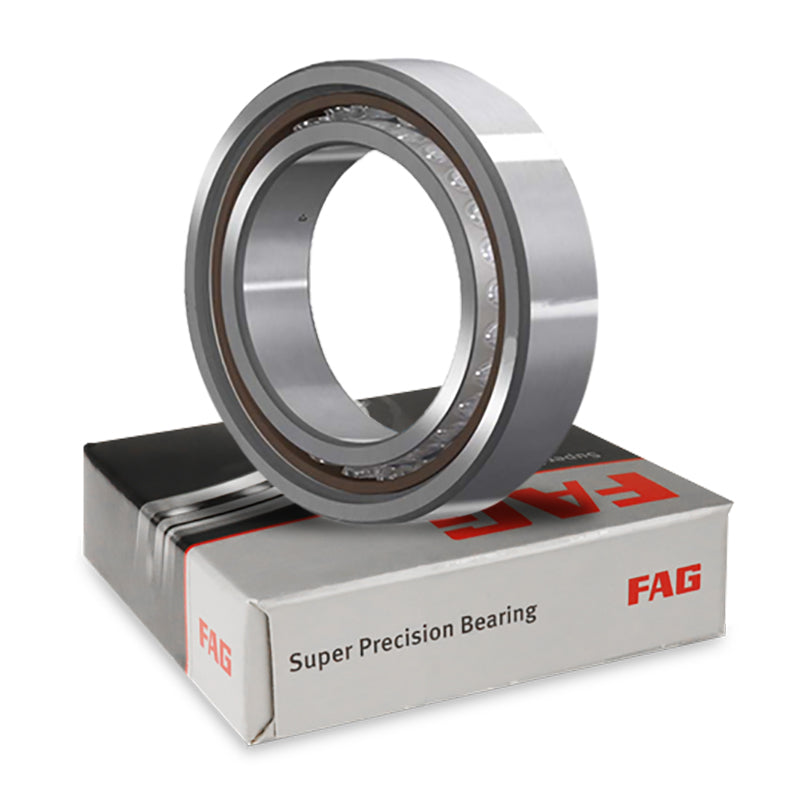

FAG HCB7030CTP4SUM Super Precision Angular Contact Spindle Bearing 150x225x35mm

FAG Super Precision Spindle Bearings: FAG Universal Bearings are single row angular contact ball bearings. They are manufactured in such a way that they can be mounted in any arrangement without suffering performance losses, and can be combined in different sets. This brings essential logistical advantages, especially in spare parts purchasing and stock-keeping. The bearings can be arranged according to the symbol on the outer ring surface.
The FAG range of Super Precision Bearings for main spindles in machine tools is among the most sophisticated in the world and represents the highest-performance technology.
This item is supplied as a single bearing with medium preload and is universally matchable.
Benefits: Trusted world-renowned FAG brand, highest precision, excellent speed ability.

Brand / Quality:

FAG - High Quality

Inside Diameter:

150mm

Outside Diameter:

225mm

Width:

35mm

Seals / Shields:

None

Style:

Single Universal Matchable Bearing

Bearing Preload:

Medium preload
