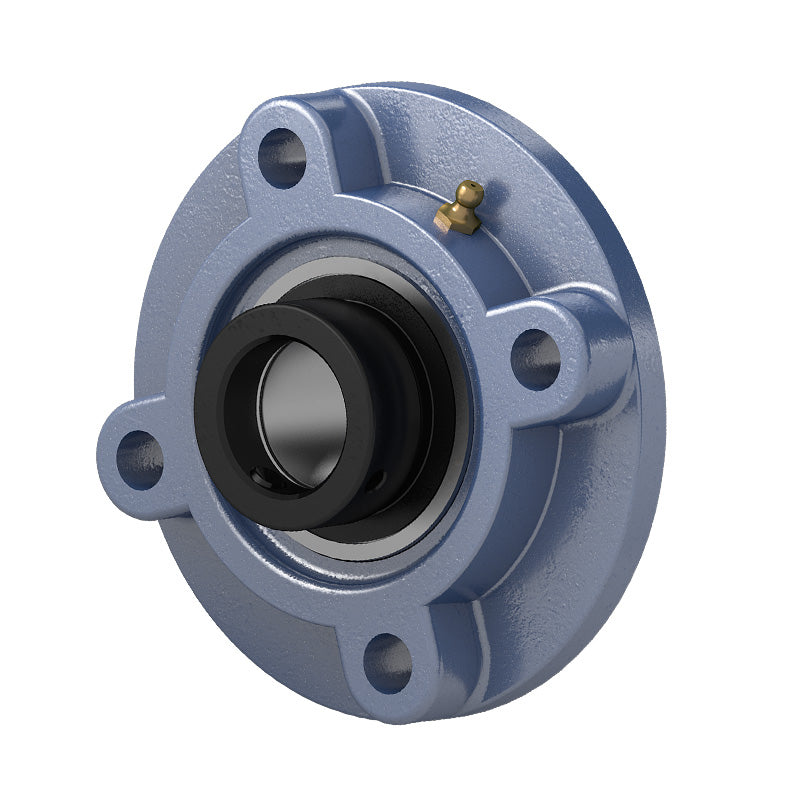

HCFC206-17 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/16 inch Eccentric Collar Insert

HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

26.99mm = 1.063 (1-1/16) inch

Style:

HCFC

Pitch Circle Diameter:

70.64mm = 2.781 (2-25/32) inch
