SKU: HCFL205

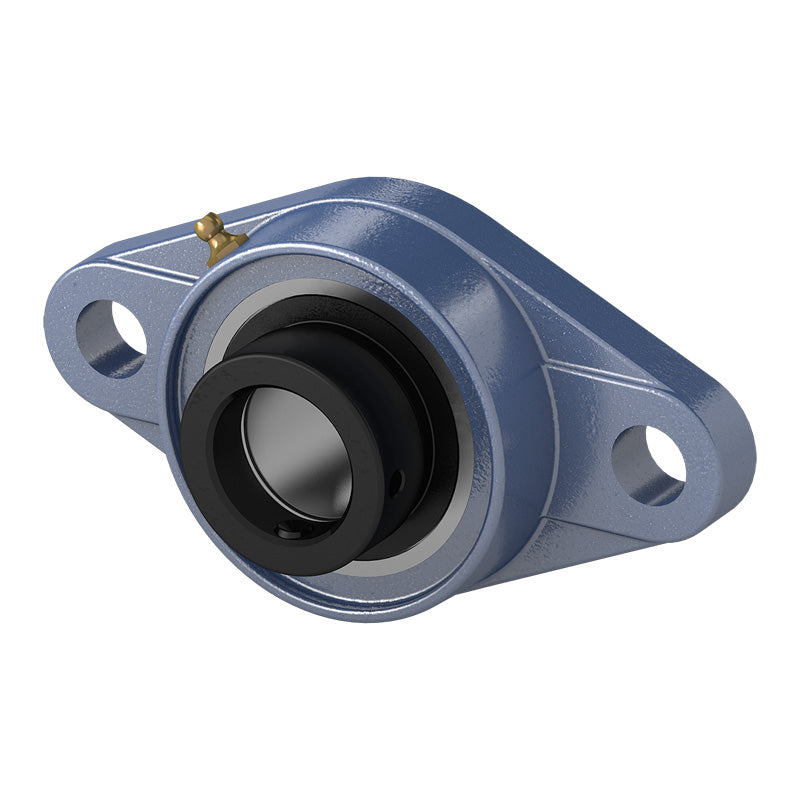

HCFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Eccentric Collar Insert
HCFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Eccentric Collar Insert
Regular price
$18.68
ex VAT
Regular price
Sale price
$18.68
ex VAT
In stock
Price Break
3+
$12.52
4+
$11.81
9+
$11.67
19+
$11.53
49+
$11.39
99+
$11.25
499+
$10.55
999+
$10.41
1999+
$10.27
2999+
$10.12
4999+
$9.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- HCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 130mm |
| e | 99mm |
| i | 16mm |
| g | 13mm |
| l | 27mm |
| s | 16mm |
| b | 68mm |
| z | 42.9mm |
| B1 | 44.4mm |
| n | 17.5mm |
| Bolt size | M14 |
| Bearing no | HC205 |
| Housing no | FL205 |
| Weight | 0.63 kg |
