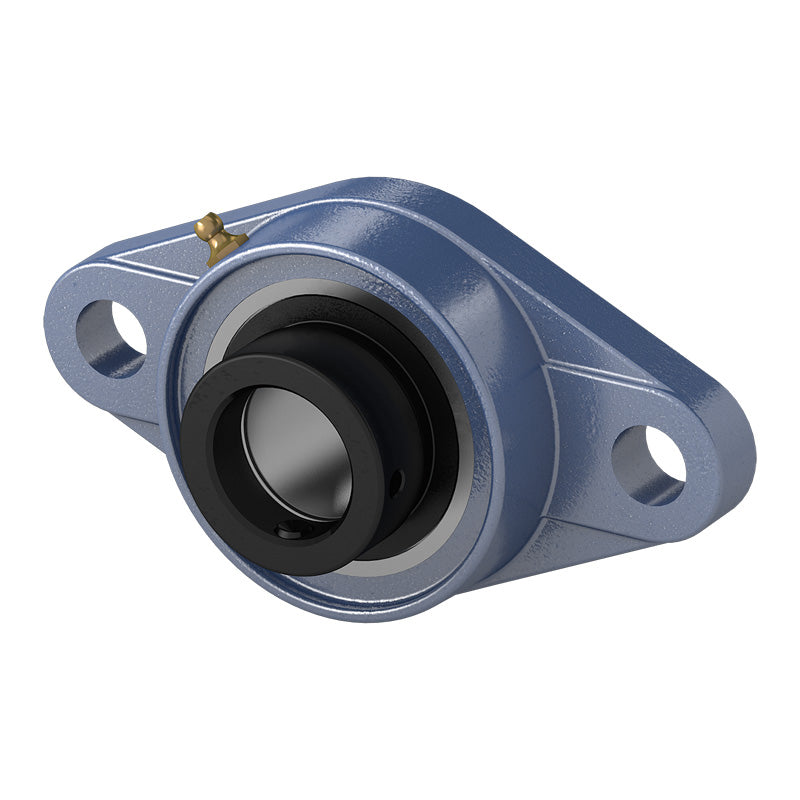

HCFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Eccentric Collar Insert
HCFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Eccentric Collar Insert
Regular price
$38.20
ex VAT
Regular price
Sale price
$38.20
ex VAT
In stock
Price Break
3+
$25.59
4+
$24.15
9+
$23.86
19+
$23.58
49+
$23.29
99+
$23.00
499+
$21.56
999+
$21.28
1999+
$20.99
2999+
$20.70
4999+
$20.13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- HCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 175mm |
| e | 144mm |
| i | 21mm |
| g | 14mm |
| l | 36mm |
| s | 16mm |
| b | 100mm |
| z | 55.9mm |
| B1 | 56.3mm |
| n | 21.4mm |
| Bolt size | M14 |
| Bearing no | HC208 |
| Housing no | FL208 |
| Weight | 1.56 kg |
