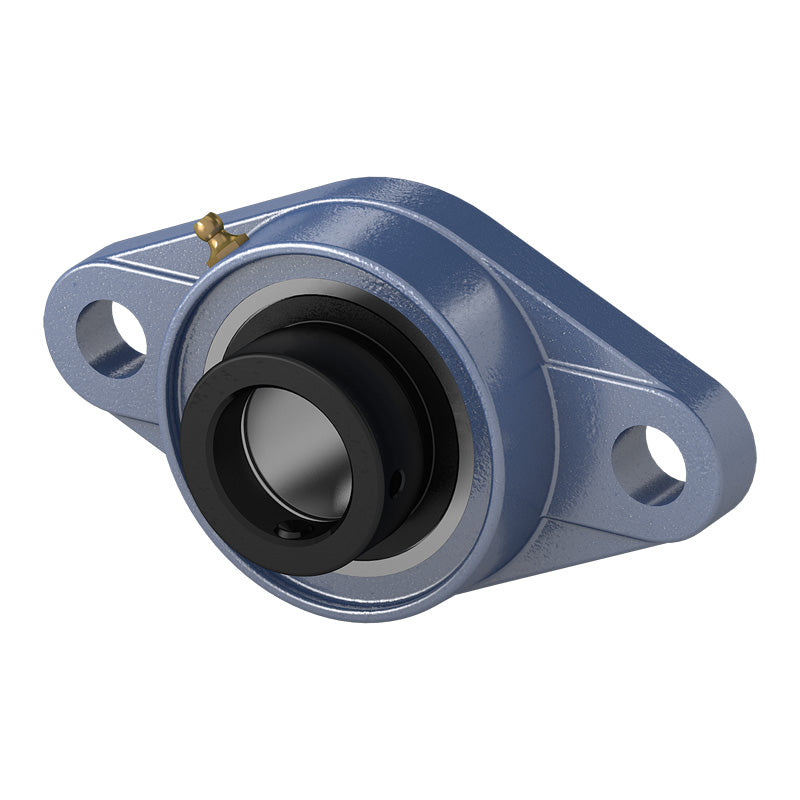

• HCFL213-40 Imperial Two Bolt Cast Iron Oval Housing with 2-1/2 inch Eccentric Collar Insert
1 1

SKU: HCFL213-40

HCFL213-40 Imperial Two Bolt Cast Iron Oval Housing with 2-1/2 inch Eccentric Collar Insert

HCFL213-40 Imperial Two Bolt Cast Iron Oval Housing with 2-1/2 inch Eccentric Collar Insert
$93.78 ex VAT
$93.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.82
4+ $59.29
9+ $58.58
19+ $57.87
49+ $57.17
99+ $56.46
499+ $52.93
999+ $52.23
1999+ $51.52
2999+ $50.82
4999+ $49.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Style:
HCFL
Bolt Hole Centres:
209.95mm = 8.266 (8-17/64) inch
Technical
d 2-1/2 inch
a 10-5/32 inch
e 8-17/64 inch
i 1-3/16 inch
g 7/8 inch
l 1-31/32 inch
s 29/32 inch
b 6-3/32 inch
z 3-7/32 inch
B1 3.374 inch
n 1.343 inch
Bolt size 3/4 inch
Bearing no HC213-40
Housing no FL213
Weight 5.2 kg
