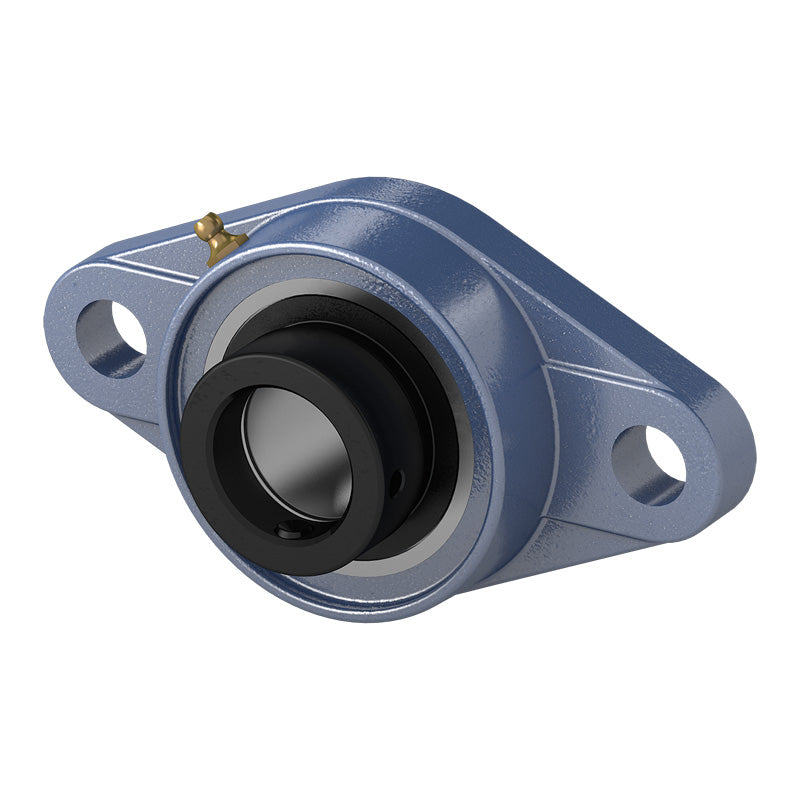

• HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
1 1

SKU: HCFL217-52

HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert

HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
$169.81 ex VAT
$169.81 ex VAT
Sale Sold out

In stock

Price Break
3+ $113.74
4+ $107.35
9+ $106.08
19+ $104.80
49+ $103.52
99+ $102.24
499+ $95.85
999+ $94.57
1999+ $93.30
2999+ $92.02
4999+ $89.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
82.55mm = 3.25 (3-1/4) inch
Style:
HCFL
Bolt Hole Centres:
147.24mm = 5.797 (5-51/64) inch
Technical
d 3-1/4 inch
a 9-27/32 inch
e 5-51/64 inch
i 23/32 inch
g 1-25/32 inch
l 7.0866 inch
s 29/32 inch
b 7-15/32 inch
z 3-13/32 inch
B1 2.906 inch
n 0.921 inch
Bolt size 7/8 inch
Bearing no HC217-52
Housing no FL217
Weight 8.7071 kg
