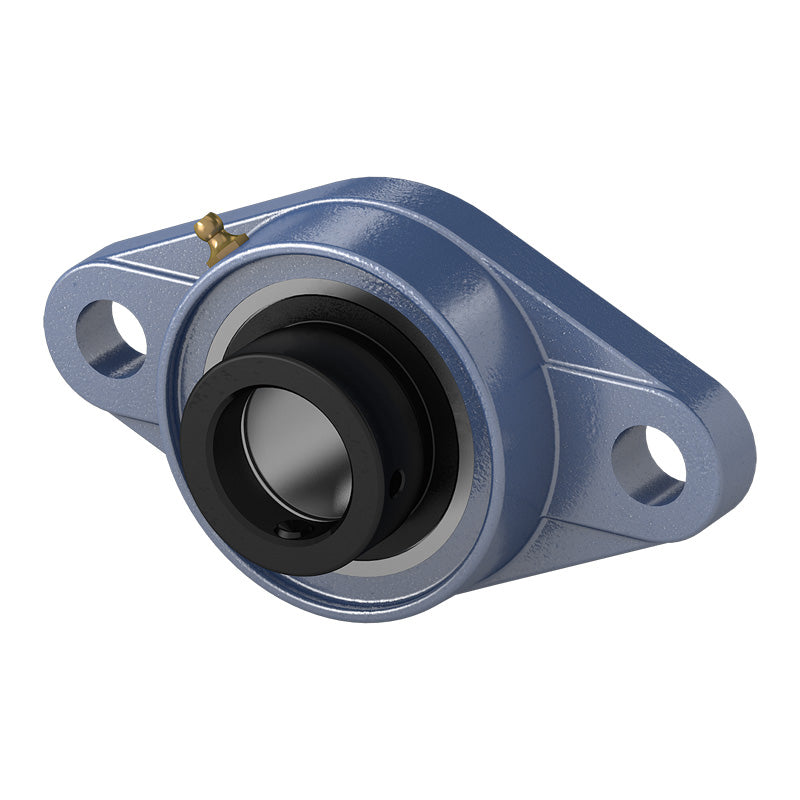

HCFL217-55 Imperial Two Bolt Cast Iron Oval Housing with 3-7/16 inch Eccentric Collar Insert

HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

87.31mm = 3.437 (3-7/16) inch

Style:

HCFL

Bolt Hole Centres:

147.24mm = 5.797 (5-51/64) inch
