SKU: HFL.0615.EU

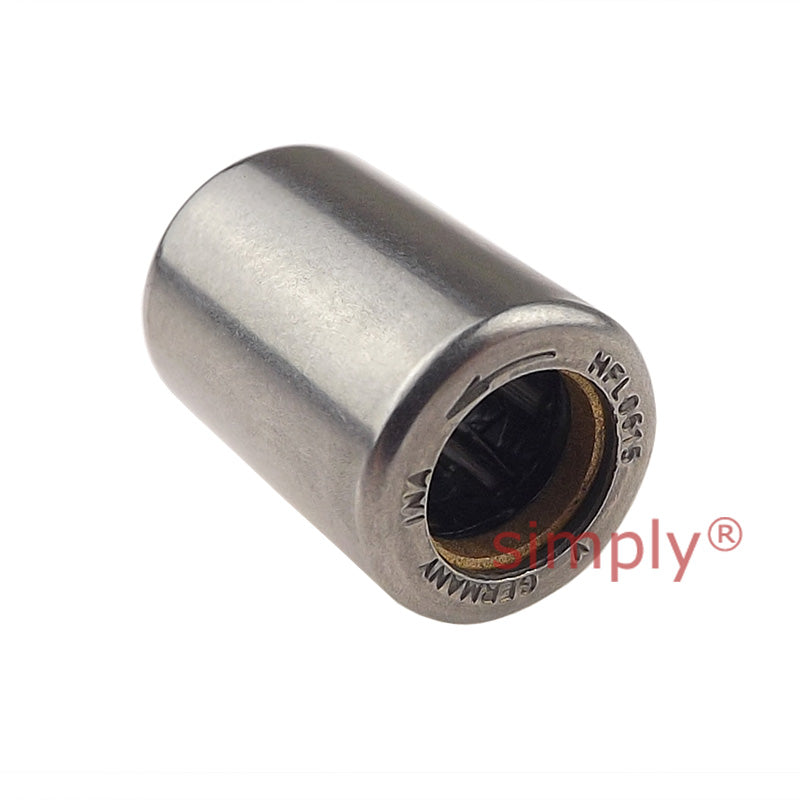

HFL0615 Budget Needle Roller Clutch Type One Way Bearing 6x10x15mm
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 10mm
- Width:
- 15mm
Technical
| Fw | 6mm |
|---|---|
| D | 10mm |
| C | 15mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 1.76 Nm |
| Speed (rotating shaft) | 23000 rpm |
| Speed (rotating outer ring) | 13000 rpm |
| Maximum permissable radial load | 110 N |
| Limiting load | 18000 N/min |
| Weight | 4 g |
